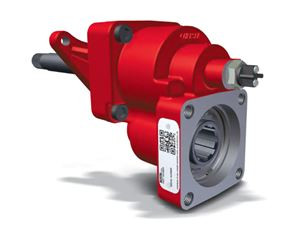

The Chelsea 511 Series Power Take-Off Assembly, part number 511XRASW-V-XK or 511XRASWVXK, is a rear-mount PTO designed for broad transmission compatibility across Eaton/Fuller, Volvo/Mack, ZF, and other platforms. It supports both pneumatic and mechanical shift, delivering a continuous torque rating of 590 lb-ft (800 Nm) with output power of 56 HP at 1,000 RPM and 28 HP at 500 RPM. The output shaft is DIN 5462 or 4-bolt DIN 5462 configuration. Chelsea's zero-backlash design eliminates manual gear lash adjustment at installation. Call us to confirm the correct configuration for your transmission and application.
Features
Rear-mount PTO configuration
Dual shift capability: pneumatic or mechanical
Continuous torque rating: 590 lb-ft (800 Nm)
Output power: 56 HP / 42 kW at 500 RPM; 112 HP / 84 kW at 1,000 RPM
DIN 5462 and 4-bolt DIN 5462 output shaft types
Fits Eaton/Fuller, Volvo/Mack, ZF, and other transmission platforms
Tech Specs
- Mounting Type: Rear Mount
- Shift Type: Pneumatic, Mechanical
- Continuous Torque: 590 lb-ft (800 Nm)
- Intermittent Torque: 501+ lb-ft (501+ Nm) - check application pages for actual ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power at 500 RPM: 56 HP / 42 kW
- Shaft Power at 1,000 RPM: 112 HP / 84 kW
- Output Shaft Type: DIN 5462, 4-Bolt DIN 5462
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, ZF, and other manufacturers
