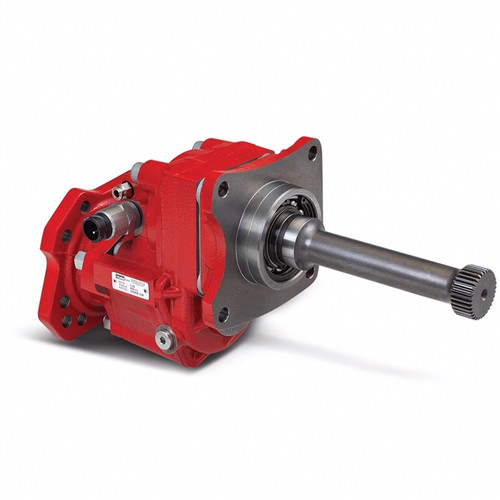

The Chelsea 524 Series power take-off assembly, part number 524XMDDX-H-XV or 524XMDDXHXV, is a rear-mount PTO engineered specifically for the Daimler DT12 transmission. Using the transmission's rear-mount aperture, the 524 Series compact housing helps resolve clearance problems that can arise with other mounting configurations. The series offers three gear ratios, a pneumatic shift mechanism, and DIN 5462 output shaft flanges. Six shift options are integrated directly into the PTO housing, keeping the installation compact. High-capacity bearings and a quick-assembly sealed bayonet connector for the indicator switch are built into the design. Call us to confirm proper fit for your specific application.
Features
Rear-mount design uses transmission's rear aperture to help eliminate clearance issues
Pneumatic shift with six shift options integrated into the PTO housing
DIN 5462 output shaft with 4-bolt DIN 5462 direct-mount pump flange options
Three gear ratios available within the 524 Series platform
Compact two-gear housing design suited for vocational truck applications
Quick-assembly sealed bayonet connector for the indicator switch
Tech Specs
- Mounting Type: Rear Mount
- Shift Type: Pneumatic
- Output Shaft Type: DIN 5462, 4-Bolt DIN 5462
- Product Series: 524
- Mounting Option: ISO 7653 80mm x 80mm Mount (X)
- Lubricant/Spline: Dry Spline (X)
- Application: Daimler DT12 Transmission
