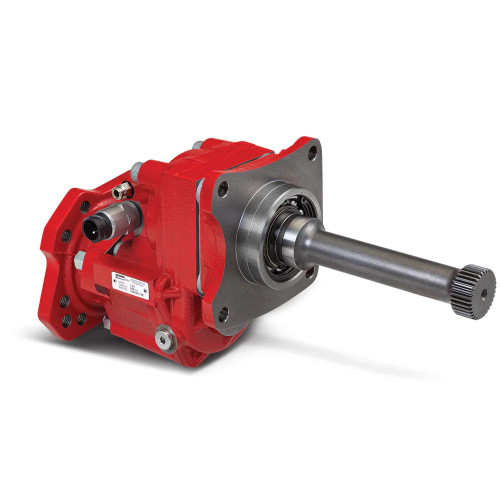

The Chelsea 524 Series Power Take-Off Assembly, part number 524XUDBX-A-XK or 524XUDBXAXK, is a rear-mount PTO designed to eliminate clearance issues by utilizing the rear mount aperture available on select transmissions. The 524 Series features a compact two-gear housing with three speed ratios and pneumatic shift. Intermittent torque reaches 407 lb-ft, with continuous-duty applications calling for a 30% de-rate per Chelsea application guidelines. Output shafts conform to DIN 5462 and 4-Bolt DIN 5462 standards. Six shift options are integrated directly into the housing for a space-saving installation. Input adapters are available for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions. Common applications include fire, aerial, refuse, tippers, and sewer and sanitation equipment. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 524 Series rear mount design utilizes rear aperture to eliminate clearance issues
Pneumatic shift with six shift options integrated into the housing
Intermittent torque rating up to 407 lb-ft per series specification; continuous applications require 30% de-rate
DIN 5462 and 4-Bolt DIN 5462 output shaft options
Two direct-mount pump output flanges; sealed bayonet connector for indicator switch
Compatible with input adapters for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions
Tech Specs
- Mounting Type: Rear Mount
- Shift Type: Pneumatic
- Output Shaft Type: DIN 5462, 4-Bolt DIN 5462
- Mounting Option: ISO 7653 80mm x 80mm Mount
- Intermittent Torque (Series Rating): 407 lb-ft
- Continuous Torque: De-rate 30% from intermittent rating (see Chelsea application pages)
- Output Power (Series): 49 to 57 HP at 100 RPM output shaft
- Lubricant: Dry Spline
- Product Series: 524
