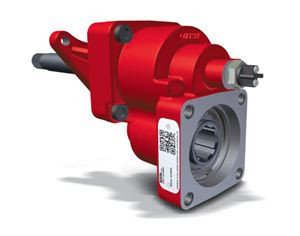

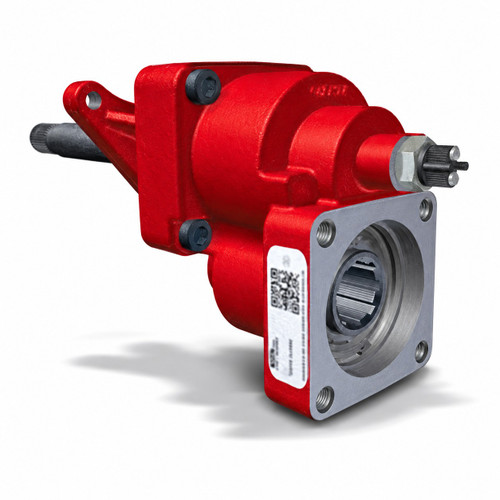

The Chelsea 524XVASX-V-XV (also listed as 524XVASXVXV) is a 524 Series rear-mount power take-off assembly with pneumatic shift. It mounts to the rear aperture of compatible transmissions using an ISO 7653 80mm x 80mm mount pattern, which helps clear tight underbody spaces where a side-mount unit may not fit. The output shaft is DIN 5462 or 4-Bolt DIN 5462 configuration, and the unit uses a dry spline lubrication setup. Continuous torque rating is 300 lb-ft (407 Nm); shaft power at 1,000 RPM reaches 57 HP (40 kW). Compatible transmissions include ZF, Eaton/Fuller, Volvo/Mack, and certain other applications. Call us to confirm proper fit for your specific transmission and chassis.
Features
Chelsea 524 Series rear-mount PTO assembly, part number 524XVASX-V-XV or 524XVASXVXV
Pneumatic shift with ISO 7653 80mm x 80mm rear-mount pattern
Continuous torque rating: 300 lb-ft (407 Nm)
Shaft power at 1,000 RPM: 57 HP (40 kW)
Output shaft type: DIN 5462 or 4-Bolt DIN 5462
Dry spline lubrication; compatible with ZF, Eaton/Fuller, Volvo/Mack, and other select transmissions
Tech Specs
- Transmission Compatibility: ZF, Eaton/Fuller, Volvo/Mack, and select other transmissions
- Product Series: 524
- Shift Type: Pneumatic
- Mounting Type: Rear Mount
- Mounting Option: ISO 7653 80mm x 80mm mount
- Output Shaft Type: DIN 5462, 4-Bolt DIN 5462
- Lubricant: Dry Spline
- Continuous Torque: 300 lb-ft (407 Nm)
- Output Power at 100 RPM Output Shaft: 49-57 HP (37-40 kW)
- Shaft Power at 1,000 RPM: 57 HP (40 kW)
