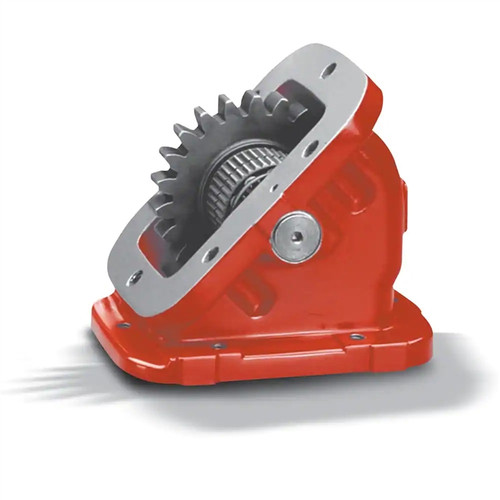

The Chelsea 645XAHX-3XX or 645XAHX3XX is a 645 Series geared PTO adapter designed to solve clearance and rotation problems at the transmission PTO opening. It mounts a 6-bolt PTO to a 6-bolt transmission aperture and positions the PTO output at a 45-degree angle downward, helping eliminate interference with chassis components or nearby obstacles. The adapter uses the same input gears as the Chelsea 442 Series, which simplifies parts sourcing for shops already stocking 442 Series components. Cross-references include 85100836, CHE-645XAHX-3XX, CHL645XAHX3XX, and WA20-26-0001. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
6-bolt PTO to 6-bolt transmission opening configuration
45-degree downward angle positions PTO output to clear chassis interference
Uses the same input gears as the Chelsea 442 Series
Geared adapter design changes output shaft rotation as needed
Cross-references: 85100836, CHE-645XAHX-3XX, CHL645XAHX3XX, WA20-26-0001
Tech Specs
- Mounting configuration: 6-bolt PTO to 6-bolt transmission opening
- Output angle: 45 degrees (offsets PTO downward to clear obstacles)
- Input gears: same as Chelsea 442 Series
- Cross-references: 1450-645XAHX3XX, 85100836, CHE-645XAHX-3XX, CHL645XAHX3XX, WA20-26-0001
