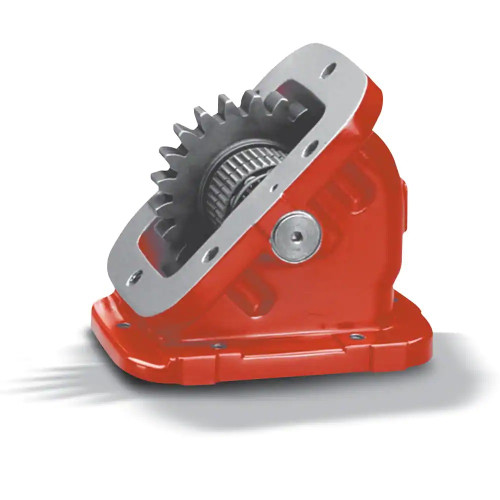

The Chelsea 645XITX-4JL or 645XITX4JL is a geared adapter PTO assembly designed for 6-bolt PTO openings on 6-bolt transmissions. Its 45-degree angled offset repositions the PTO downward, providing clearance where a standard straight-mount PTO would contact the frame, crossmember, or other driveline components. The 645XITX-4JL uses the same input gears as the Chelsea 442 Series, so shops already familiar with 442 Series service procedures will find the internal gear interface consistent. Dimensions are 7.75 in. high by 10.75 in. wide by 10.75 in. long. Call us to confirm proper fit for your application before ordering.
Features
6-bolt PTO to 6-bolt transmission mounting pattern
45-degree downward angle offset to eliminate clearance and interference issues
Shares input gear design with the Chelsea 442 Series
Dimensions: 7.75 in. H x 10.75 in. W x 10.75 in. L
Genuine Chelsea geared adapter assembly
Tech Specs
- Mounting: 6-bolt PTO to 6-bolt transmission opening
- Offset angle: 45 degrees downward
- Input gear compatibility: Chelsea 442 Series input gears
- Dimensions: 7.75 in. H x 10.75 in. W x 10.75 in. L
