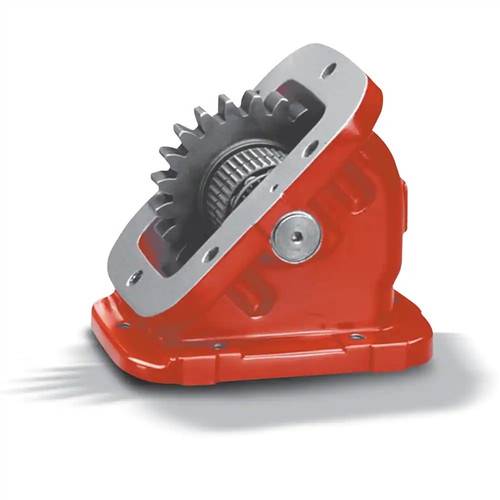

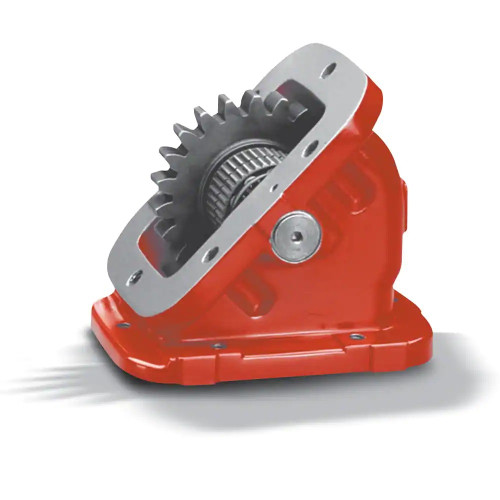

The Chelsea 645ZITX-4KA or 645ZITX4KA is a 645 Series power take-off assembly designed to mount on a 6-bolt transmission opening using a 6-bolt PTO interface. Its defining feature is a 45-degree downward angle that repositions the PTO output to help clear frame rails, hydraulic lines, or other components that would otherwise cause interference in tight installations. The 645 Series shares its input gear design with the Chelsea 442 Series, making it a practical fit for operators already familiar with that platform. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
6-bolt PTO mounts to a 6-bolt transmission opening
45-degree downward angle repositions the output to help eliminate interference
Shares input gear design with the Chelsea 442 Series
Chelsea 645 Series platform
Part number: 645ZITX-4KA or 645ZITX4KA
Tech Specs
- 6-Bolt PTO to a 6-Bolt Transmission Opening
- 45-degree downward offset to help eliminate interference issues
- Uses the same input gears as the Chelsea 442 Series
Additional Information
Parts Manual: Chelsea 645 Series PTO Parts Manual (PDF), exploded views, item numbers and the full parts breakdown for this series.
