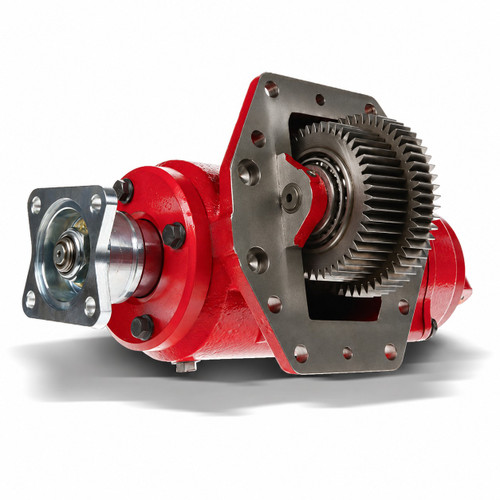

The Chelsea 810 Series Power Take-Off Assembly, part number 810FMMFP-K2SV or 810FMMFPK2SV, is engineered specifically for the Ford 10R140HD transmission. The 810 Series uses an 8-bolt mounting configuration and hydraulic shift operation, with a continuous torque range of 195 to 420 lb-ft across the series. Multiple ratio options span 81% to 158% of engine speed. Output options within the series include a 1410 Series companion flange, a standard round shaft (1-1/4" with 5/16" key), an SAE B shaft (7/8"-13T), and an SAE BB shaft (1"-15T). Smart Start technology minimizes the torque spike at engagement, and Chelsea's QuietGear technology reduces torsional vibration noise in diesel applications. A genuine Chelsea part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Designed specifically for the Ford 10R140HD transmission
Hydraulic shift operation with 8-bolt mounting
Series continuous torque range: 195 to 420 lb-ft (291 to 569 Nm)
Multiple ratio options from 81% to 158% of engine speed
Smart Start technology reduces torque spike at engagement
QuietGear technology minimizes torsional vibration noise in diesel applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic
- Continuous Torque (series): 195 to 420 lb-ft (291 to 569 Nm)
- Ratio Range (series): 81% to 158% of engine speed
- Output Options (series): 1410 Series Companion Flange; Standard Round Shaft 1-1/4" with 5/16" Key; SAE B Shaft 7/8"-13T; SAE BB Shaft 1"-15T
- Lubricant: Pressure Lube
- Application: Ford 10R140HD Transmission
Additional Information
Parts Manual: Chelsea 810 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
