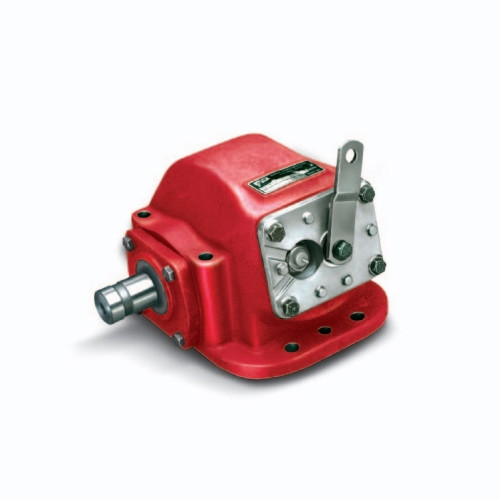

The Chelsea 812GKAHX-A3XD or 812GKAHXA3XD is a single-gear Power Take-Off Assembly from the Chelsea 812 Series, designed to fit most manual transmissions with an 8-bolt mounting aperture. The 812 Series was built around a low-profile cast iron housing, a practical advantage in tight under-vehicle installations, and carries an intermittent torque rating of up to 400 lb-ft (542 Nm) for extra heavy-duty vocational work. Shift type for this series is wire/cable mechanical. Common applications include dump trucks, tow and recovery units, and aerial devices. Call us to confirm proper fitment for your specific transmission and chassis.
Features
Single-gear 8-bolt PTO design fits most manual transmissions with 8-bolt mounting apertures
Low-profile cast iron housing engineered for extra heavy-duty vocational applications
Wire/cable mechanical shift operation
Intermittent torque rating up to 400 lb-ft (542 Nm)
Output power rating: 56+ HP (51+ kW)
Round shaft output with 1-inch, 1/4-inch key configuration
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: Round Shaft (1" - 1/4" Key)
- Intermittent Torque Rating: 301-400 lb-ft (542 Nm)
- Output Power: 56+ HP (51+ kW)
- Application: Most manual transmissions with 8-bolt mounting aperture
