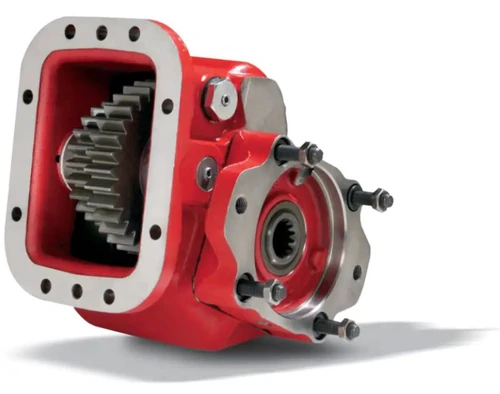

The Chelsea 852XBAKP-B6XV or 852XBAKPB6XV is an 8-bolt Hydraulic PowerShift Power Take-Off from the Chelsea 852 Series, built for Allison automatic transmissions with 8-bolt PTO mounting apertures. It delivers shaft power of 48 HP at 500 RPM and 95 HP at 1,000 RPM, with an intermittent torque rating up to 500 lb-ft (check application pages for your specific application rating). The output shaft is a 1-1/2"-10T spline with a 1410 series companion flange. Pressure lubrication is standard, and the 852 Series offers three internal speed ratios, giving it flexibility across demanding vocational applications including oil field service, bulk transport, and fire and rescue. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm the correct ratio and output configuration for your application.
Features
Fits Allison automatic transmissions with 8-bolt PTO mounting apertures
Hydraulic PowerShift (hydraulic shift type)
1-1/2"-10T spline output shaft with 1410 series companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Intermittent torque up to 500 lb-ft (verify rating on application pages)
Pressure lubrication standard; three internal speed ratios available
Tech Specs
- Transmission Manufacturer: Allison
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque: Up to 500 lb-ft / 678 Nm (check application pages for actual torque ratings)
- Output Power: 56+ HP / 51+ kW
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Shaft Power: 48 HP (500 RPM), 95 HP (1,000 RPM) / 36 kW (500 RPM), 71 kW (1,000 RPM)
- Lubrication: Pressure lube standard
- Continuous Operation: Yes, with 30% de-rating
