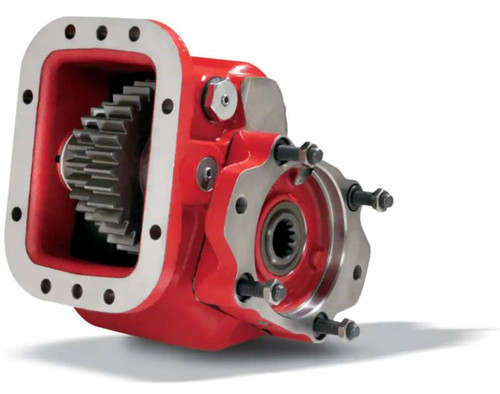

The Chelsea 852XGAKP-F4XV or 852XGAKPF4XV is an 852 Series Hydraulic PowerShift Power Take-Off built to mount on Allison automatic transmissions with 8-bolt PTO apertures. Output is delivered through a 1-1/2"-10 spline shaft fitted with a 1410 companion flange. The 852 Series carries an intermittent torque rating up to 500 lb-ft (678 Nm) - actual torque ratings vary by application and should be verified on the Chelsea application pages. Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. A cast iron housing and heavy-duty ball bearings on the output shaft contribute to long service life in demanding vocational environments. Call us to confirm this PTO fits your specific Allison transmission configuration.
Features
8-Bolt mounting for Allison automatic transmissions
Hydraulic PowerShift (PowerShift) engagement
1-1/2"-10 spline output shaft with 1410 companion flange
Intermittent torque up to 500 lb-ft (678 Nm) - verify rating on Chelsea application pages
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Pressure lubrication standard; cast iron housing with heavy-duty output shaft ball bearings
Tech Specs
- Transmission Manufacturer: Allison
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: 1-1/2"-10 Spline with 1410 Companion Flange
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM, 95 HP (71 kW) at 1,000 RPM
- Continuous Operation: Yes, with 30% de-rating
- Lubrication: Pressure Lubrication Standard
