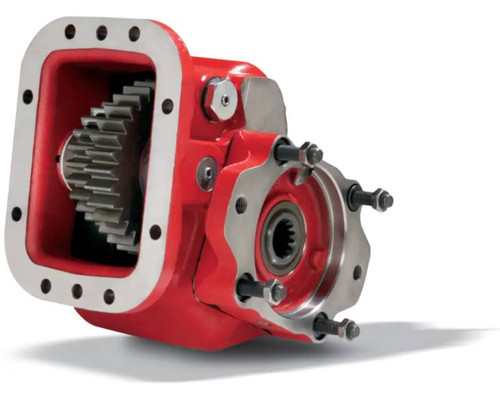

The Chelsea 852XJAKP-D6XS or 852XJAKPD6XS is a Hydraulic PowerShift Power Take-Off from the Chelsea 852 Series, engineered for Allison automatic transmissions with 8-bolt PTO mounting apertures. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Intermittent torque is rated up to 500 lb-ft (678 Nm - check application pages for actual ratings). Shaft power reaches 95 HP at 1000 RPM. The 852 Series features a cast iron housing, heavy-duty ball bearings on the output shaft, and a large clutch pack for demanding duty cycles. Common applications include bulk transporter trucks, oil field equipment, and fire and rescue vehicles. Call us to confirm proper fit for your application.
Features
Hydraulic PowerShift shift type for Allison automatic transmissions
8-bolt mounting configuration
1410 companion flange output with 1-1/2"-10T spline shaft
Intermittent torque up to 500 lb-ft (678 Nm) - verify actual rating on application pages
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Three internal speed ratios available; pressure lubrication standard
Tech Specs
- Transmission Manufacturer: Allison
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Companion Flange
- Intermittent Torque: Up to 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
- Continuous Operation: Yes, with 30% de-rating
