Chelsea PTO Assembly P/N: 870XAFJP-B5AB or 870XAFJPB5AB

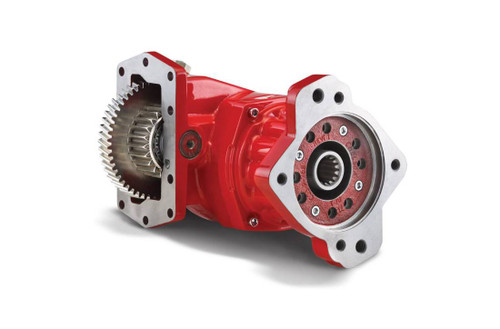

Stock photo not actual item

870XAFJP-B5AB Chelsea PTO Assembly

Chelsea

<span class="pgt-ships-as"><b>Part number 870XAFJPB5AB has been replaced by PT3131PCE633DA.</b> Orders for 870XAFJPB5AB ship as PT3131PCE633DA.</span> This item is replaced with: 871XAFJP-B5AB or 871XAFJPB5AB

Listing Price: $6,557.70
Sale Price: $3,606.74

Superseded by PT3131PCE633DA

(No reviews yet) Write a Review
Product Code:
CHL870XAFJPB5AB
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
Genuine Chelsea PTO Assembly P/N: 870XAFJP-B5AB or 870XAFJPB5AB, in box ready to ship today! Do not hesitate to ask us any questions
Interchanges:

Features

Compact housing height reduces clearance issues
Integral actuation valve simplifies plumbing and reduces installation time
Wet Spline Technology to extend PTO & pump shaft life
Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • INTERMITTENT TORQUE:: 501+ lb-ft 501+ Nm
  • MOUNTING TYPE: 10-Bolt
  • OUTPUT SHAFT TYPE: 1410 Companion Flange 1-1/2" - 10T Spline w/ 1410 Flange
  • SHIFT TYPE: Hydraulic PowerShift (Hydraulic)
  • OUTPUT POWER: 56+ HP 51+ kW
  • TRANSMISSION MANUFACTURER: Allison Other
  • SHAFT POWER: 500 RPM: 64, 1000 RPM: 128 HP 500 RPM: 48, 1000 RPM: 95 kW
  • WEIGHT: 56 lb 25 kg< /li>
  • CONTINUOUS TORQUE: 908 (Check Application Pages for Actual Torque Ratings) Nm 670 (Check Application Pages for Actual Torque Ratings) lb-ft

Additional Information

Chelsea PTO 870 series model break down

Parts Manual: Chelsea 870 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
