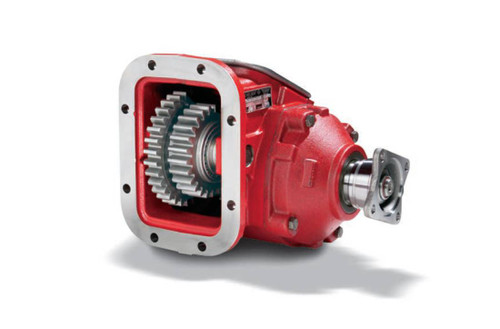

The Chelsea 885 Series Power Take-Off Assembly, part number 885XGAHX-A3XV or 885XGAHXA3XV, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty vocational applications. It fits transmissions from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers with an 8-bolt PTO aperture. The output shaft is a 1-1/2"-10T spline with a 1410 series companion flange. Intermittent torque rating reaches up to 500 lb-ft (678 Nm); verify actual torque limits on the application pages for your specific configuration. Shaft power delivery is 48 HP at 500 RPM and 95 HP at 1000 RPM. The cast iron housing encloses heavy-duty ball bearings on the output shaft. Pressure lubrication is available on applicable configurations. Call us to confirm proper fit for your transmission and application.
Features
8-bolt mounting, compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmissions featuring an 8-bolt PTO aperture
Hydraulic PowerShift (PowerShift Hydraulic) engagement
Intermittent torque capacity up to 500 lb-ft (678 Nm); check application pages for actual torque ratings
1-1/2"-10T spline output shaft with 1410 series companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Rugged cast iron housing with heavy-duty ball bearings on the output shaft; pressure lubrication available
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP (51+ kW)
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, and other 8-bolt aperture transmissions
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
