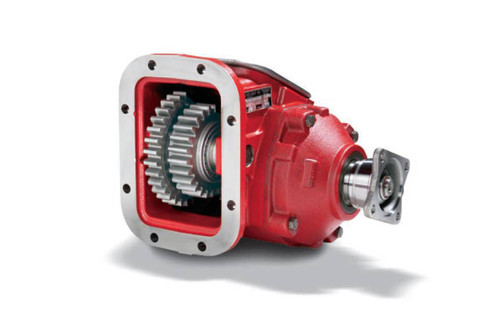

The Chelsea 885 Series Power Take-Off Assembly, part number 885XGAKP-P6XS or 885XGAKPP6XS, is a hydraulic PowerShift PTO built for heavy-duty 8-bolt aperture transmissions from Eaton/Fuller, Allison, Volvo/Mack, and other manufacturers. The 885 Series is rated for intermittent torque up to 500 lb-ft (678 Nm), verify actual torque against Chelsea application pages for your specific installation. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Shaft power output reaches 48 HP at 500 RPM and 95 HP at 1000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft are built to handle oil field, bulk transport, and fire and rescue duty cycles. Continuous operation is supported with a 30% de-rating. Call us to confirm proper fit for your transmission and application.
Features
Hydraulic PowerShift (PowerShift) engagement, 8-bolt mounting for compatible automatic and manual transmissions
Intermittent torque rating up to 500 lb-ft (678 Nm), check Chelsea application pages for actual torque ratings for your installation
Output shaft: 1-1/2"-10T spline with 1410 series companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM (36 kW and 71 kW respectively)
Rugged cast iron housing with heavy-duty ball bearings on the output shaft
Pressure lubrication available; continuous operation supported with 30% de-rating
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm), check application pages for actual torque ratings
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP (51+ kW)
- Transmission Compatibility: Eaton/Fuller, Allison, Volvo/Mack, Other 8-bolt aperture transmissions
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP at 500 RPM, 95 HP at 1000 RPM (36 kW at 500 RPM, 71 kW at 1000 RPM)
- Continuous Operation: Yes, with 30% de-rating
