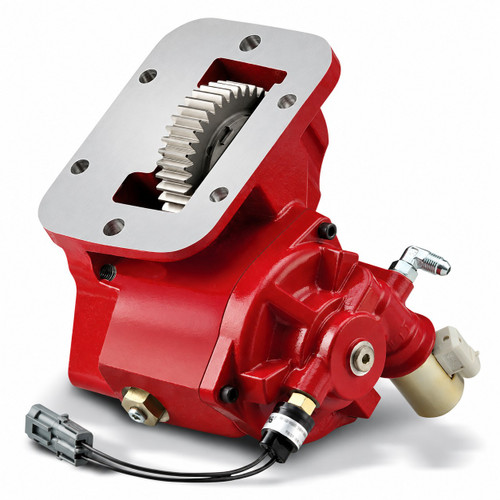

249HMLLX-BVIT Chelsea PTO Pump Combo

The Chelsea 249HMLLX-BVIT is a PTO pump combo unit built for the Ford 6R140 (TorqShift 6) automatic transmission. Part of the Chelsea 249 Series, it mounts via a 6-bolt Ford pattern and uses hydraulic (PowerShift) actuation. The 249 Series carries an intermittent torque rating of up to 200 lb-ft (271 Nm) and delivers 57 HP at 1,488 RPM as a series characteristic. Chelsea's patented noise-suppression system makes this the only quiet PTO designed specifically for the Ford Super Duty TorqShift 6. A single-hose connection and integrated actuation valve simplify installation. Common applications include service trucks, tow and recovery, small dump trucks, and aerial equipment. Call us to confirm proper fit for your specific vehicle and pump configuration.

Features

Chelsea 249 Series PTO Pump Combo, part number 249HMLLX-BVIT or 249HMLLXBVIT
Ford 6R140 TorqShift 6 transmission application, 6-bolt Ford mounting pattern
Hydraulic (PowerShift) shift actuation with single-hose connection
Integrated cartridge valve and pressure switch reduce installation time and leak paths
Patented noise-suppression system, the only quiet PTO for the Ford Super Duty TorqShift 6
Intermittent torque capacity up to 200 lb-ft (271 Nm); 57 HP (42 kW) at 1,488 RPM series rating

Tech Specs

• Mounting Type: Ford 6-Bolt
• Transmission Application: Ford 6R140 (TorqShift 6 Automatic)
• Shift Type: Hydraulic (PowerShift)
• Intermittent Torque Rating (series): 200 lb-ft / 271 Nm
• Shaft Power (series): 57 HP (42 kW) at 1,488 RPM
• Output Power: 56+ HP / 41-50 kW
• Lubricant System: Internal Pressure Lube
• Continuous Operation: Yes, with 30% de-rating
• Available for 2WD and 4WD applications
• Package Dimensions: 8 in. H x 10 in. W x 14 in. L

Additional Information

The Chelsea 249HMLLX-BVIT is part of the 249 Series PTO lineup engineered specifically for the Ford Super Duty with the 6R140 TorqShift 6 automatic transmission. Parker Chelsea designed this series to solve the torsional noise issues common to PTO installations on these trucks, and the 249 Series remains the only PTO on the market with a patented noise-reduction solution for this application. The single-hose actuation design eliminates multiple connection points, cutting installation time and reducing potential leak paths. Typical markets include aerial work platforms, tow and recovery, service trucks, small dump trucks, fire and rescue, and water drilling equipment. For reference, supporting documentation includes the 247/249/249V/272-F Series Owner's Manual and the 249 Series Parts List (HY25-2249-M1_US), available through Parker Chelsea. Not sure this is your part? Give us a call.
