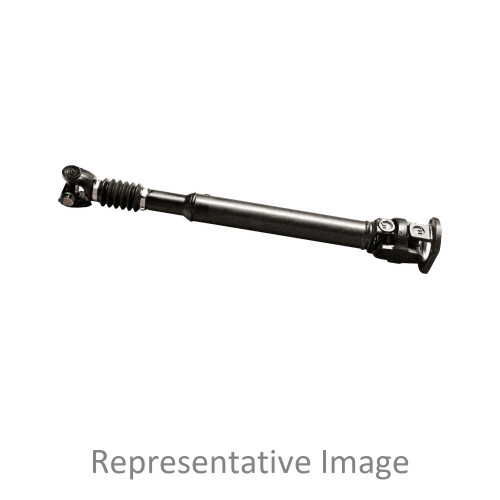

The Dana Spicer SPL140 series drive shaft, part number 10089424-990MR or 10089424990MR, is a welded steel driveline assembly built to the ReadyShaft specification. The steel tube measures 110.0 mm in diameter with a 5.0 mm wall thickness and a tube length of 990.0 mm (38.98 in.). Center-line-to-center-line collapsed length is 1355.0 mm (53.35 in.) and installed length is 1410 mm (55.51 in.). Maximum slip travel is 110.0 mm (4.33 in.), with mid-slip at 55.0 mm (2.17 in.). The shaft ships with two standard (ST-style) universal joints already installed; no CV joints or phasing are included. Call us to confirm proper fit for your application.
Features
SPL140 series, welded steel construction
Tube dimensions: 110.0 mm diameter x 5.0 mm wall (4.33 in. x 0.197 in.)
Tube length: 990.0 mm / 38.98 in.
CL-to-CL collapsed: 53.35 in. (1355.0 mm); installed: 55.51 in. (1410 mm)
Maximum slip: 110.0 mm (4.33 in.); mid-slip: 55.0 mm (2.17 in.)
Includes 2 ST-style universal joints; ReadyShaft program part
Tech Specs
- Series: SPL140
- Shaft Material: Steel
- Assembly Type: Welded
- Tube Length: 990.0 mm / 38.98 in.
- Tube Size: 110.0 mm diameter x 5.0 mm wall (4.331 in. x 0.197 in.)
- CL Yoke to CL Yoke - Collapsed: 1355.0 mm / 53.35 in.
- CL Yoke to CL Yoke - Installed: 1410 mm / 55.51 in.
- Max Slip: 110.0 mm / 4.33 in.
- Mid Slip: 55.0 mm / 2.17 in.
- 1/2 Max Slip: 55.0 mm / 2.17 in.
- Universal Joints Included: Yes - 2 (ST style)
- CV Joints Included: No
- Slip Assembly: No
- Phased: No
- Joint Angle: 25 degrees
- Program: ReadyShaft
