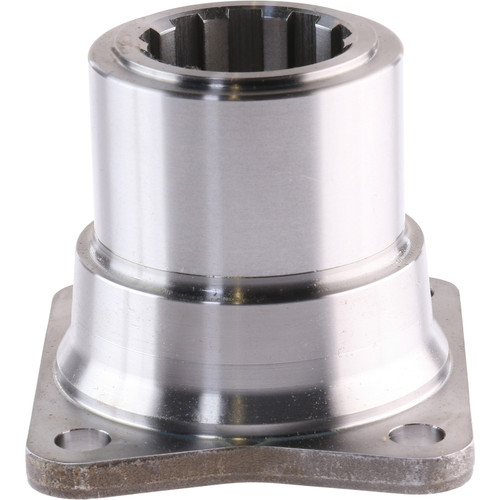

Genuine Dana Spicer Comp. Flange - driveline part P/N: 4-1-3171 or 413171.This item is no longer available. For help on parts, availability or questions, please call and we'd love to help.
Tech Specs
- Series 1480
- Major Diameter (D) In. 1.750
- Invoice COMPANION FLANGE
- Spline Count 10
- Involute Spline N
- Pilot Diameter (C) In. 3.750 - FEMALE
- Bolt Circle Dia.(B) In.(FL YK) 4.750
- Bolt Hole Diameter In (FL YK) 0.500 - DRILLED
- Number Of Holes (FL YK) 4
- Brake Drum Pilot Diameter In. 3.875
- Ground Hub Diameter In. 2.375
- Length Thru Hole (F) In. 2.188
- Flange Face To End Of Hub (G) 2.812
- Companion Flange Assembly N
- Material Steel
