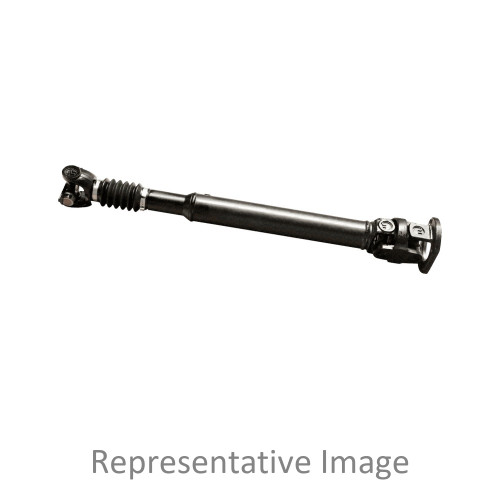

Genuine Dana Spicer Driveshaft - driveline part P/N: 250DS55002C-872M or 250DS55002C872M.This item is no longer available. For help on parts, availability or questions, please call and we'd love to help.
Tech Specs
- Series SPL250
- Shaft Material Steel
- Tube Size (MM) 128.5 x 4.25
- Max Slip (MM) 110.0000
- Tube Size (IN) 5.06 x .167
- Max Slip (IN) 4.3307
- Tube Length (MM) 870.0000
- Mid Slip (MM) 55.0000
- Tube Length (IN) 34.2520
- Mid Slip (IN) 2.1654
- CL Yoke To CL Yoke (MM) - COLL 1251.0000
- CL Yoke To CL Yoke (IN) - COLL 49.2520
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 25
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1306.0000
- CL Yoke To CL Yoke (IN)-INST 51.4173
