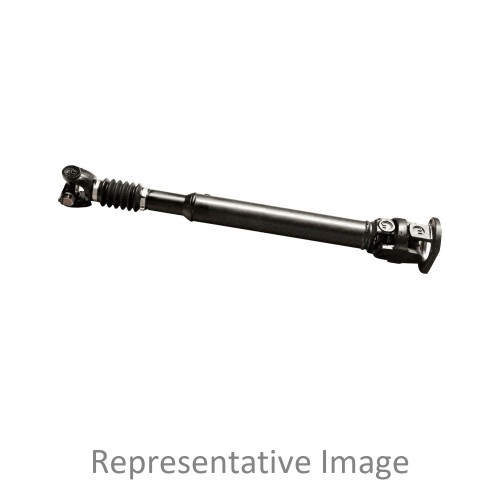

Dana Spicer part number 250DS55002C-990M or 250DS55002C990M is a welded steel driveshaft in the SPL250 series. The steel tube measures 5.06 inches in diameter with a 0.167-inch wall, and tube length is 38.98 inches. Collapsed center-line-to-center-line length is 53.98 inches; installed center-line-to-center-line length is 56.14 inches. Maximum slip is 4.33 inches and mid-slip is 2.17 inches. The shaft ships with two universal joints included, is not phased, and is rated for a 25-degree joint angle. A genuine Dana Spicer part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
SPL250 series welded steel driveshaft
Tube size: 5.06 in. diameter x 0.167 in. wall (128.5 mm x 4.25 mm)
Tube length: 38.98 in. (990 mm)
Installed CL-to-CL length: 56.14 in. (1,426 mm); collapsed CL-to-CL: 53.98 in. (1,371 mm)
Maximum slip: 4.33 in. (110 mm); mid-slip: 2.17 in. (55 mm)
Includes 2 universal joints; 25-degree joint angle; not phased
Tech Specs
- Series SPL250
- Shaft Material Steel
- Tube Size 5.06 in. x 0.167 in. wall (128.5 mm x 4.25 mm)
- Tube Length 38.98 in. (990 mm)
- Max Slip 4.33 in. (110 mm)
- Mid Slip 2.17 in. (55 mm)
- CL Yoke to CL Yoke - Collapsed 53.98 in. (1,371 mm)
- CL Yoke to CL Yoke - Installed 56.14 in. (1,426 mm)
- Assembly Welded
- Universal Joints Included Yes - 2
- Joint Angle 25 degrees
- Phased No
- VMRS 024000000
