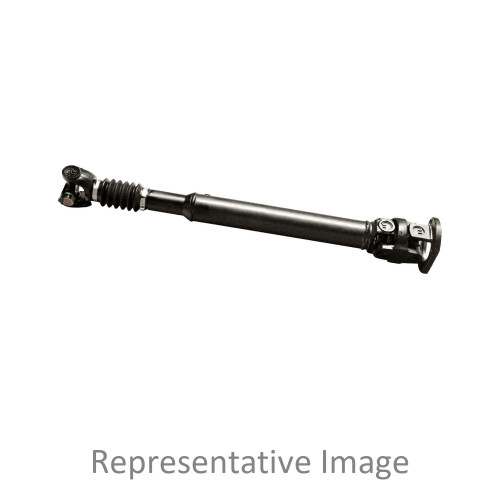

Genuine Dana Spicer Driveshaft P/N: 807382-2224 or 8073822224, Limited stock! Don't miss out! Genuine parts, direct from Dana Spicer. Dana's guarantee, global delivery. Expert guidance whenever you need!
Tech Specs
- Series 1810
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 114.3 x 3.40
- Max Slip (MM) 127.0000
- Tube Size (IN) 4.50 x .134
- Max Slip (IN) 5.0000
- Tube Length (MM) 577.8500
- Mid Slip (MM) 63.5000
- Tube Length (IN) 22.7500
- Mid Slip (IN) 2.5000
- CL Yoke To CL Yoke (MM) - COLL 1009.6500
- CL Yoke To CL Yoke (IN) - COLL 39.7500
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 30
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1073.1500
- CL Yoke To CL Yoke (IN)-INST 42.2500
