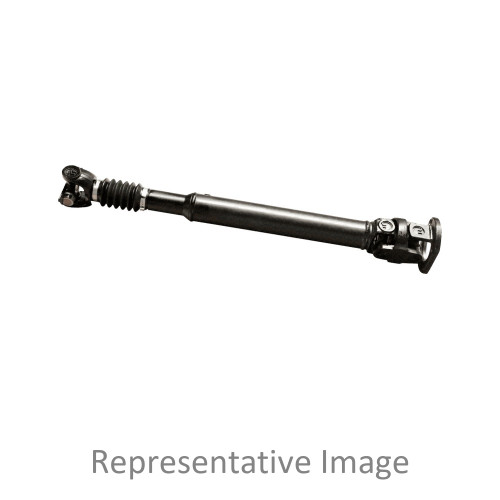

The Dana Spicer 810652-2811 or 8106522811 is a welded steel 1760 Series driveshaft built for heavy-duty applications. The steel tube measures 4.09 inches in diameter with a 0.180-inch wall thickness and a tube length of 28.34 inches (719.93 mm). Collapsed center-line-to-center-line length is 42.01 inches (1066.93 mm); installed center-line-to-center-line length is 43.95 inches (1116.23 mm). Maximum slip travel is 3.88 inches (98.60 mm). The assembly ships with two universal joints already included, is not phased, and is rated for a joint angle of 22 degrees. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
1760 Series heavy-duty driveshaft
Welded steel tube: 4.09 in. diameter x 0.180 in. wall (103.9 x 4.57 mm)
Tube length: 28.3438 in. (719.93 mm)
Collapsed CL-to-CL length: 42.0052 in. (1066.93 mm); installed CL-to-CL: 43.9461 in. (1116.23 mm)
Maximum slip: 3.88 in. (98.60 mm)
2 universal joints included; non-phased; 22-degree joint angle rating
Tech Specs
- Series 1760
- Shaft Material Steel
- Tube Size 4.09 in. x 0.180 in. wall (103.9 x 4.57 mm)
- Tube Length 28.3438 in. (719.9313 mm)
- Max Slip 3.8800 in. (98.6000 mm)
- Mid Slip 1.9410 in. (49.3000 mm)
- CL Yoke to CL Yoke - Collapsed 42.0052 in. (1066.9300 mm)
- CL Yoke to CL Yoke - Installed 43.9461 in. (1116.2300 mm)
- Joint Angle 22 degrees
- Phased No
- Universal Joints Included Yes - 2
- Assembly Type Welded
- Package Type Each
