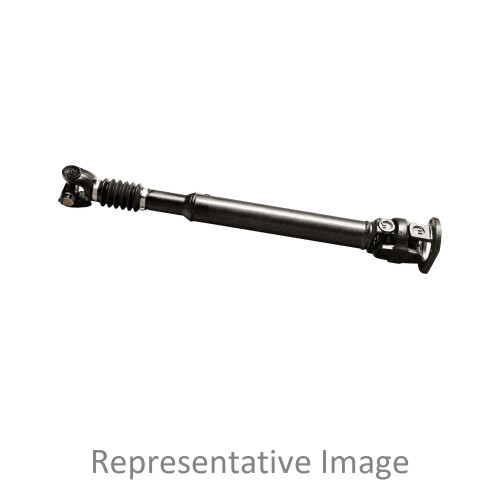

Genuine Dana Spicer Driveshaft P/N: 817093-2608 or 8170932608, Get the parts you need for your next repair. Your equipment deserves the best! Genuine Dana Spicer parts, global reach. Our experts await your call!
Tech Specs
- Series 1810
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 116.7 x 4.57
- Max Slip (MM) 127.0000
- Tube Size (IN) 4.59 x .180
- Max Slip (IN) 5.0000
- Tube Length (MM) 666.7500
- Mid Slip (MM) 63.5000
- Tube Length (IN) 26.2500
- Mid Slip (IN) 2.5000
- CL Yoke To CL Yoke (MM) - COLL 1098.9500
- CL Yoke To CL Yoke (IN) - COLL 43.2657
- Material Steel
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 30
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1162.4500
- CL Yoke To CL Yoke (IN)-INST 45.7657
