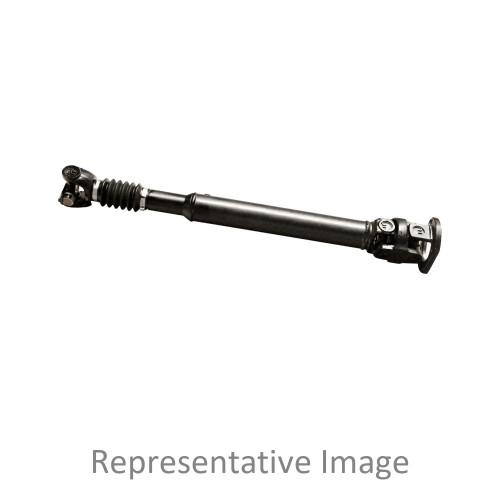

Genuine Dana Spicer Driveshaft P/N: 817093-3524 or 8170933524, Genuine parts, direct from Dana Spicer. Why wait? Get it today! Authentic Genuine Dana Spicer parts, delivered globally. Need assistance? Our experts have got you covered!
Tech Specs
- Series 1810
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 116.7 x 4.57
- Max Slip (MM) 127.0000
- Tube Size (IN) 4.59 x .180
- Max Slip (IN) 5.0000
- Tube Length (MM) 908.0500
- Mid Slip (MM) 63.5000
- Tube Length (IN) 35.7500
- Mid Slip (IN) 2.5000
- CL Yoke To CL Yoke (MM) - COLL 1340.2500
- CL Yoke To CL Yoke (IN) - COLL 52.7657
- Material Steel
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 30
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1403.7500
- CL Yoke To CL Yoke (IN)-INST 55.2657
