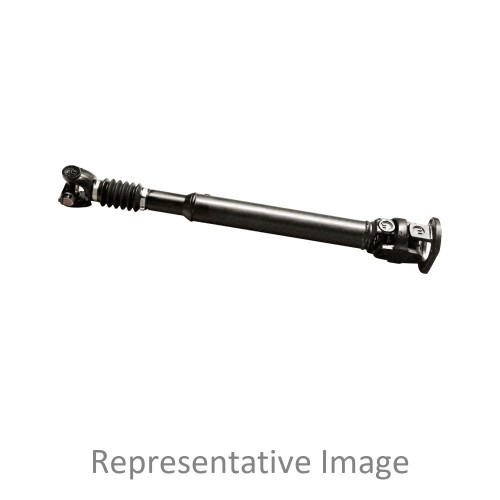

Genuine Dana Spicer Driveshaft P/N: 905283-6321 or 9052836321, Your equipment deserves the best! Quality meets affordability! From Dana's warehouses to your door, anywhere in the world. Expertise at your fingertips!
Tech Specs
- Series 1550
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 88.90 x 3.96
- Max Slip (MM) 63.5000
- Tube Size (IN) 3.50 x .156
- Max Slip (IN) 2.5000
- Tube Length (MM) 1616.8688
- Mid Slip (MM) 31.7500
- Tube Length (IN) 63.65625
- Mid Slip (IN) 1.2500
- CL Yoke To CL Yoke (MM) - COLL 1879.7688
- Material Steel
- CL Yoke To CL Yoke (IN) - COLL 74.0066437
- 1/2 Max Slip (MM) 31.7500
- 1/2 Max Slip (IN) 1.2500
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 21
- CL Yoke To Flange Face (MM)-COLL 23
- CL Yoke To Flange Face (IN)-INST Welded
- No. of Universal Joint Included Yes
- U-Joint Style 2
- CL Yoke To CL Yoke (MM)-INST SR
- CL Yoke To End Of Spline Sleeve (MM)-COLL 1911.5188
- CL Yoke To End Of Spline Sleeve (IN)-COLL 75.2566
- Slip Assembly No
- Slip Yoke C to End (MM) No
