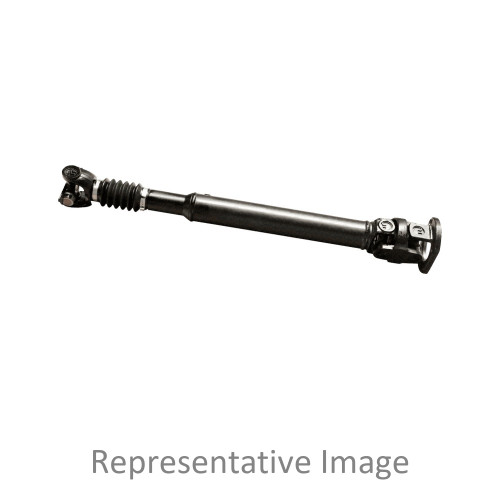

Genuine Dana Spicer Driveshaft P/N: 905885-0314 or 9058850314, Why wait? Order today! Shipped globally, only with genuine Genuine Dana Spicer parts! Our experts are just a call away!
Tech Specs
- Series 1880
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 114.30 x 6.58
- Max Slip (MM) 130.1750
- Tube Size (IN) 4.50 x .259
- Max Slip (IN) 5.1250
- Tube Length (MM) 87.3125
- Mid Slip (MM) 65.0875
- Tube Length (IN) 3.4375
- Mid Slip (IN) 2.5625
- CL Yoke To CL Yoke (MM) - COLL 584.1873
- Material Steel
- CL Yoke To CL Yoke (IN) - COLL 22.9995
- 1/2 Max Slip (MM) 65.0875
- 1/2 Max Slip (IN) 2.5625
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 22.5
- CL Yoke To Flange Face (MM)-COLL 22.5
- CL Yoke To Flange Face (IN)-INST Welded
- No. of Universal Joint Included Yes
- U-Joint Style 2
- CL Yoke To CL Yoke (MM)-INST BP
- CL Yoke To End Of Spline Sleeve (MM)-COLL 649.2748
- CL Yoke To End Of Spline Sleeve (IN)-COLL 25.5620
- Slip Assembly No
- Slip Yoke C to End (MM) No
