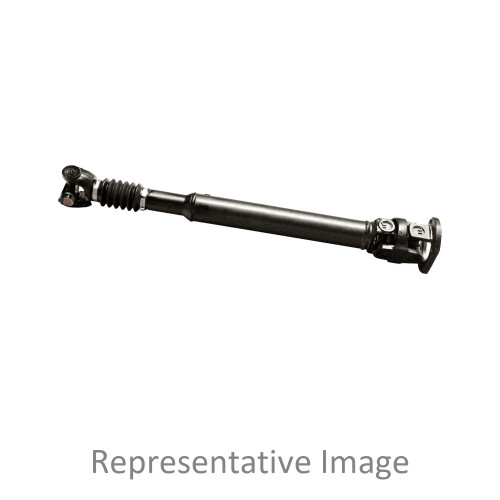

The Dana Spicer 1480 Series driveshaft, part number 915854-1725 or 9158541725, is a steel-tube drive shaft built to 1480-series driveline specifications. The tube measures 3.50 inches in diameter with a 0.083-inch wall thickness and a tube length of 17.78 inches (451.64 mm). Collapsed center-line-yoke to center-line-yoke length is 21.84 inches (554.84 mm), and the overall installed length to the flange face is 670.64 mm. The shaft is welded (non-slip assembly), not phased, and operates at a maximum joint angle of 21 degrees. A U-joint is included. Call us to confirm proper fitment for your application.
Features
Dana Spicer 1480 Series driveline
Steel tube: 3.50 in. diameter x 0.083 in. wall (88.90 x 2.11 mm)
Tube length: 17.78 in. (451.64 mm)
Collapsed CL yoke to CL yoke: 21.84 in. (554.84 mm)
Maximum joint angle: 21 degrees
Welded, non-slip, non-phased shaft; U-joint included
Tech Specs
- Series 1480
- Shaft Material Steel
- Tube Size (IN) 3.50 x .083 in.
- Tube Size (MM) 88.90 x 2.11 mm
- Tube Length (IN) 17.78 in.
- Tube Length (MM) 451.64 mm
- CL Yoke to CL Yoke (IN) - Collapsed 21.84 in.
- CL Yoke to CL Yoke (MM) - Collapsed 554.84 mm
- Installed Length to Flange Face (MM) 670.64 mm
- Joint Angle 21 degrees
- Slip Assembly No
- Phased No
- U-Joint Included Yes
- U-Joint Style 2
- VMRS 024000000
