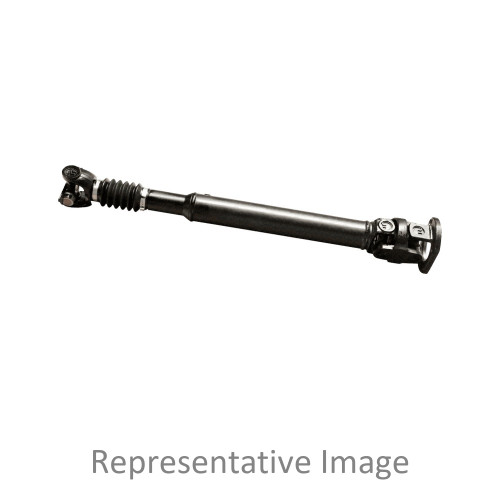

Genuine Dana Spicer Driveshaft P/N: 923233-4200 or 9232334200, Limited stock! Don't miss out! Why wait? Get it today! No matter where you are, expect only genuine Genuine Dana Spicer parts. Got questions? Ask our experts!
Tech Specs
- Series 1710
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 103.90 x 4.57
- Max Slip (MM) 133.4000
- Tube Size (IN) 4.09 x .180
- Max Slip (IN) 5.2520
- Tube Length (MM) 1066.8000
- Mid Slip (MM) 66.7000
- Tube Length (IN) 42
- Mid Slip (IN) 2.6260
- CL Yoke To CL Yoke (MM) - COLL 1474.0000
- CL Yoke To CL Yoke (IN) - COLL 58.03149606
- Material Steel
- 1/2 Max Slip (MM) 66.7000
- 1/2 Max Slip (IN) 2.6260
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 30
- CL Yoke To Flange Face (MM)-COLL 27
- End 1 Type SJ Side 1550.2000
- End 2 TJ Side 61.0315
- Unwelded/Welded Assembly 1616.9000
- CL Yoke To Flange Face (IN)-INST Welded
- Universal Joints Included 63.6575
- No. of Universal Joint Included Yes
- U-Joint Style 2
- CL Yoke To CL Yoke (MM)-INST BP
- CL Yoke To End Of Spline Sleeve (MM)-COLL 1540.7000
- CL Yoke To End Of Spline Sleeve (IN)-COLL 60.6575
- Slip Assembly No
- Slip Yoke C to End (MM) No
