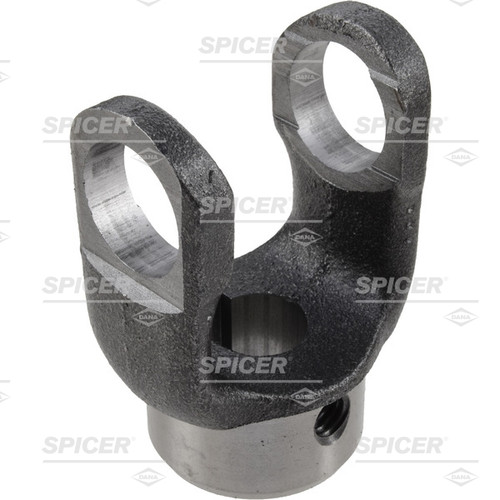

The Dana Spicer 10-4-103 or 104103 is a Series 1000 power take-off (PTO) end yoke in the ISR yoke style. It uses a straight round bore measuring 1.125 in. in diameter, fitted with a 0.250 in. SAE keyway located at the W 9 position and a 0.375 in. set screw hole at the W 3 position. The steel body has a 2.000 in. hub diameter, a 1.500 in. inside yoke dimension, and a 2.500 in. center-line to end-of-hub measurement. Length through the bore is 1.030 in. Cross-references include 10-4103, 104103, UJ1527, and SD753. Call us to confirm proper fit for your application.
Features
Dana Spicer Series 1000 PTO end yoke, ISR yoke style
Straight round hole bore, 1.125 in. diameter
0.250 in. SAE keyway, located at W 9
0.375 in. set screw hole, located at W 3
Steel construction, 2.000 in. hub diameter, 1.500 in. inside yoke dimension
Cross-references 10-4103, 104103, UJ1527, SD753
Tech Specs
- Series: 1000
- Yoke Style: ISR
- Type: Straight Round Hole
- Bore / Hole Diameter (P): 1.125 in.
- Length Through Hole (Q): 1.030 in.
- Hub Diameter (R): 2.000 in.
- Center-Line to End of Hub (S): 2.500 in.
- Inside Yoke Dimension (K): 1.500 in.
- SAE Keyway Width (X): 0.250 in.
- Keyway Location (W): 9
- Set Screw Hole Diameter: 0.375 in.
- Set Screw Location (W): 3
- Material: Steel
- Involute Spline: No
- High Performance: No
