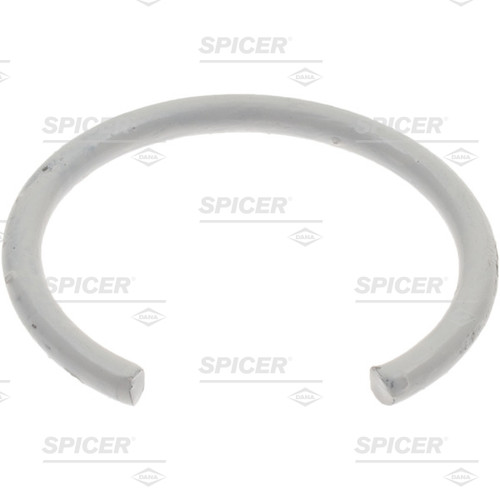

The Dana Spicer snap ring, part number 390'107 or 390HR107, is a genuine Dana Spicer component designed for on-highway axle applications. This snap ring measures 4.35 inches in outside diameter with a thickness of 0.109 inches and a wire width of 0.324 inches. Those dimensions matter at the wheel end, where an improperly sized retaining ring can compromise axle retention. If you need to confirm this ring fits your specific axle configuration, give us a call at Pro Gear and Transmission.
Features
Genuine Dana Spicer part number 390'107 or 390HR107
Snap ring type retaining ring for on-highway axle applications
Outside diameter: 4.35 in.
Thickness: 0.109 in.
Wire width: 0.324 in.
Tech Specs
- Outside Diameter: 4.35 in.
- Thickness: 0.109 in.
- Wire Width: 0.324 in.
- Type: Snap Ring
