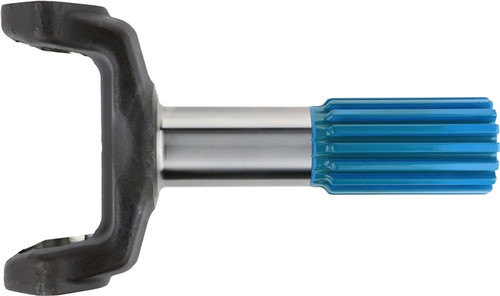

The Dana Spicer 10-82-21 or 108221 is a Series 1000 yoke shaft built to SR style with a 16-spline involute spline profile. The major spline diameter measures 1.250 in., spline hole minor diameter 1.047 in., and spline length runs 1.625 in. with a spline width of 0.125 in. The centerline-to-end-of-spline dimension (K) is 5.562 in., and the end/spline-to-point radius (R) is 3.688 in. Outside yoke dimension (E) comes in at 2.188 in., bearing cap diameter (D) at 0.983 in., and the part accommodates an operating angle of 60.0 degrees. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Series 1000 driveline application
SR style yoke shaft
16-spline involute spline profile
1.250 in. major spline diameter, 1.047 in. minor diameter
1.625 in. spline length, 0.983 in. bearing cap diameter
60.0-degree operating angle, 2.188 in. outside yoke dimension
Tech Specs
- Angle #1: 60.0 degrees
- Bearing Cap Diameter (D): 0.983 in.
- Centerline to End of Spline (K): 5.562 in.
- End/Spline to Point/Radius (R): 3.688 in.
- Involute Spline: N
- Major Spline Diameter: 1.250 in.
- Model: 1000
- Outside Yoke Dimension (E): 2.188 in.
- Series: 1000
- Spline Count: 16
- Spline Hole Minor Diameter: 1.047 in.
- Spline Length (L): 1.625 in.
- Spline Width: 0.125 in.
- Style: SR
