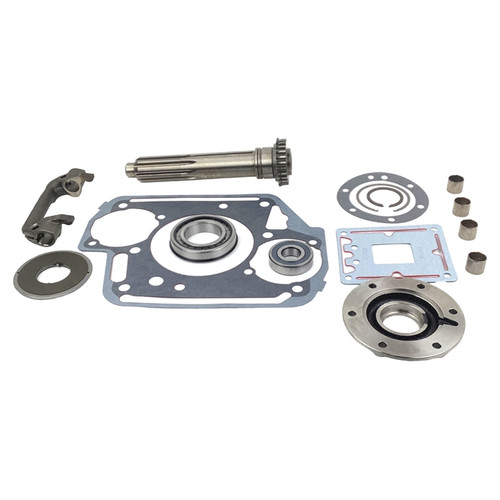

The Eaton K-4339CL or K4339CL is a Severe Duty Clutch Install Kit with hydraulic release, sold as a complete assembly. The kit includes an input shaft (S-1659), input shaft bearing (4308451), pilot bearing (5566505), front bearing cover (20550), clutch brake disc assembly (85541), clutch release yoke assembly (A-7786), a gasket kit (K-3453), two M12 x 1.25 x 40 hex head cap screws, and two snap rings. An instruction letter and extended documentation are also included in the kit. This is a genuine Eaton part available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Kit Contains:
| Qty | Part Number | Description |
| 1 | 14750 | Snap Ring |
| 1 | 16980 | Snap Ring |
| 1 | 20550 | Front Bearing Cover |
| 1 | 4308451 | Roller Bearing |
| 1 | 5566505 | Ball Bearing |
| 1 | 85541 | Clutch Brake Disc Assembly |
| 1 | A-7786 | Clutch Release Yoke Assembly |
| 1 | K-3453 | Gasket Kit |
| 1 | S-1659 | Input Shaft Assembly |
| 2 | X7C-1202M | Hex Washer Screw Assembly |
Features
Severe duty clutch install kit with hydraulic release design
Includes input shaft (S-1659) and input shaft bearing (4308451)
Pilot bearing (5566505) and front bearing cover (20550) included
Clutch brake disc assembly (85541) and release yoke assembly (A-7786) in kit
Gasket kit (K-3453) and two M12 x 1.25 x 40 hex head cap screws included
Instruction letter and extended documentation packaged with kit
Tech Specs
- Part Number: K-4339CL or K4339CL
- Kit Type: Severe Duty Clutch Install Kit, Hydraulic Release
- Contents: Input Shaft (S-1659), Input Shaft Bearing (4308451), Pilot Bearing (5566505), Front Bearing Cover (20550), Clutch Brake Disc Assembly (85541), Clutch Release Yoke Assembly (A-7786), Gasket Kit (K-3453), Snap Ring x2, Hex Head Cap Screw M12 x 1.25 x 40 x2
- Unit of Measure: Each
Used in this Eaton Fuller model
