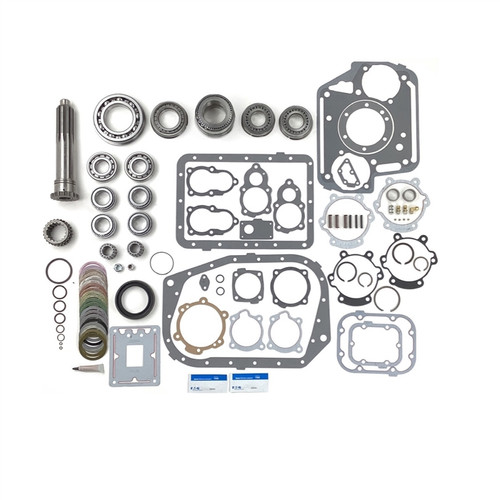

The Eaton Fuller K-3234 or K3234 Basic Overhaul Kit covers the core wear items needed for a transmission rebuild. The kit includes multiple bearings, among them input shaft, main case countershaft front, and reverse gear idler shaft bearings, along with a sliding clutch, snap rings, synchronizer springs, position-finder springs, bushings, an O-ring kit (K-2054), a gasket kit (K-2061), a shim kit (K-2805), an oil seal kit for the electronic cover (K-2918), a sealant, collets, connectors, and instruction letters. Call us to confirm proper fit for your specific transmission.
Interchanges:
- 68690
- EF68690
- K4092
- S-17058
- TRK-3234
- MACK 3088-K3234
Kit Contains (25 parts):
| Qty | Part Number | Description |
| 2 | 14317 | Snap Ring |
| 1 | 14750 | Snap Ring |
| 3 | 14897 | Spring |
| 3 | 15918 | Pos Finder Spring |
| 1 | 16763 | Snap Ring |
| 1 | 16980 | Snap Ring |
| 1 | 19974 | Valve Insert |
| 2 | 21352 | Bushing |
| 4 | 4302074-BOX | Roller Bearing or 4302074 |
| 1 | 4306647 | Sliding Clutch Mainshaft |
| 2 | 4308397 | Roller Bearing |
| 2 | 4308403 | Needle Bearing |
| 1 | 4308451 | Roller Bearing |
| 2 | 4308452 | A-Standard |
| 1 | 5556503-BOX | Roller Bearing or 5556503 |
| 1 | 5566508-BOX | Bearing Ball or 5566508 |
| 1 | 71205 | Sealant |
| 4 | 83002 | Collet |
| 2 | 84004 | Straight Connector |
| 1 | 85001 | Pipe Connector |
| 1 | K-2054 | O-Ring Kit |
| 1 | K-2061 | Gasket Kit |
| 1 | K-2805 | Shim Kit |
| 1 | K-2918 | Oil Seal Kit Elec Cover |
| 1 | S-1659 | Input Shaft Assembly |
Features
Includes input shaft bearing, main case countershaft front bearings (x2), and reverse gear idler shaft bearings (x2)
O-ring kit K-2054, gasket kit K-2061, shim kit K-2805, and oil seal kit K-2918 for electronic cover included
Multiple snap rings, synchronizer springs (x3), position-finder springs (x3), and bushings (x2)
Sliding clutch (x1) and collets (x4) included
Sold by Pro Gear and Transmission as a genuine Eaton Fuller part
