K-3345 Eaton Fuller Basic Overhaul Kit

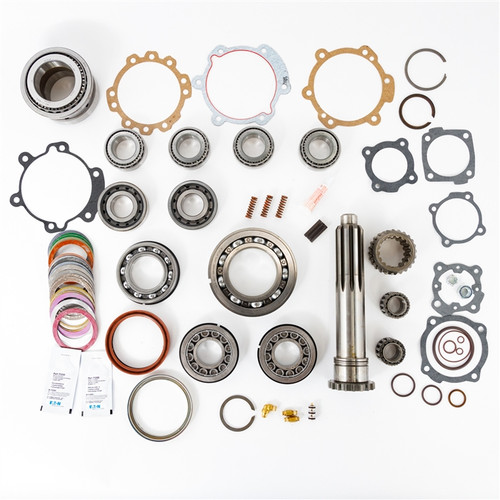

The Eaton Fuller Basic Overhaul Kit K-3345 or K3345 is a transmission rebuild package that bundles the major wear components needed for an overhaul. The kit includes input shaft assembly S-1659, a sliding clutch (4304317), countershaft front bearings (4308397), reverse gear idler shaft bearings (4308403), a ball bearing (81504) and additional bearings, plus position finder springs (15918), assorted snap rings and connectors. It also ships with the K-2199 gasket kit, K-2262 oil seal with slinger, K-2804 complete O-ring kit, K-2805 shim kit, sealant and printed instruction letters. Call us to confirm this kit matches your transmission model.

Features

Includes input shaft assembly S-1659
Countershaft front bearings 4308397 and reverse gear idler shaft bearings 4308403
Sliding clutch 4304317 and position finder springs 15918
Gasket kit K-2199, oil seal with slinger K-2262, O-ring kit K-2804 and shim kit K-2805
Includes sealant, connectors and assorted snap rings
Genuine Eaton Fuller kit from Pro Gear and Transmission

Additional Information

Kit K-3345 bill of materials: 14317 snap ring x2, 14750 snap ring x1, 14897 spring x3, 15918 position finder spring x3, 16980 snap ring x1, 19974 valve insert x1, 21356 bearing x1, 4301254 snap ring x1, 4302074 bearing x4, 4304317 sliding clutch x1, 4308397 main case countershaft front bearing x2, 4308403 reverse gear idler shaft bearing x2, 4308452 bearing x2, 5566508 bearing x1, 71205 sealant x1, 81504 ball bearing x1, 84005 straight connector x2, 85003 elbow connector x1, K-2199 gasket kit x1, K-2262 oil seal with slinger x1, K-2804 complete O-ring kit x1, K-2805 shim kit x1, plus instruction letters L-1680, L-3887, L-3987, and input shaft assembly S-1659 x1.
