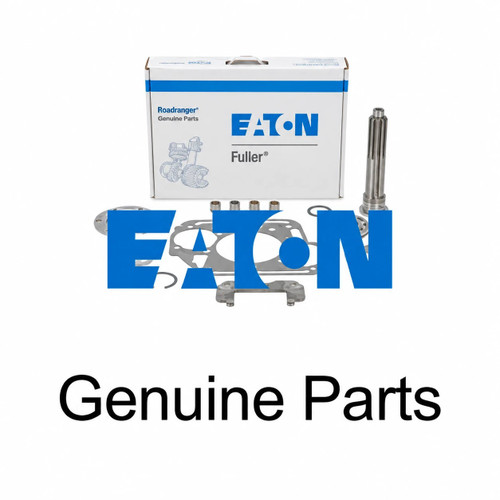

The Eaton Fuller K-3354 or K3354 is a basic overhaul kit for Eaton Fuller manual transmissions. This kit contains the core internal components needed for a transmission overhaul, including multiple tapered roller bearings, ball bearings, snap rings, springs, a position finder spring set, a sliding clutch, a shim kit (K-2805), a gasket kit (K-3288), an o-ring kit (K-3341), an oil seal kit for the electric cover (K-2918), sealant, straight and elbow connectors, and an input shaft assembly. Three separate Eaton instruction letters are included. A genuine Eaton Fuller part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
14317 Snap Ring x2
14750 Snap Ring x1
14897 Spring x3
15918 Position Finder Spring x3
16980 Snap Ring x1
4300902-BOX Tapered Roller Bearing x1
4301254 Snap Ring x1
4301851-BOX Bearing x4
4303424 Snap Ring x1
4304317 Sliding Clutch x1
4308397 Main Case Countershaft Front Bearing x2
4308403 Reverse Gear Idler Shaft Bearing x2
4308452 Bearing x2
5556503-BOX Bearing x1
5566508-BOX Bearing x1
71205 Sealant x1
81504 Ball Bearing x1
84006 Straight Connector x2
85003 Elbow Connector x1
K-2805 Shim Kit x1
K-2918 Oil Seal Kit - Electric Cover x1
K-3288 Gasket Kit x1
K-3341 O-Ring Kit x1
L-1680 Instruction Letter x1
L-3887 Instruction Letter x1
L-3987 Instruction Letter x1
S-1659 Input Shaft Assembly x1
Used in these Eaton Fuller models
Interchanges:
- FULK3354
- K3354-SP
- S-20849
- TRK-3354
- Mack 3088-K3354
Features
Includes main case countershaft front bearings (qty 2) and reverse gear idler shaft bearings (qty 2)
Contains gasket kit K-3288, o-ring kit K-3341, and oil seal kit K-2918 for electric cover
Shim kit K-2805 included for precision adjustment during rebuild
Sliding clutch (4304317) and input shaft assembly (S-1659) included
Multiple snap rings and springs cover internal transmission reassembly needs
Tech Specs
- Kit Number: K-3354 or K3354
- Kit Type: Basic Overhaul Kit
- Application: Eaton Fuller Manual Transmission
- Included Sub-Kits: Shim Kit K-2805, Gasket Kit K-3288, O-Ring Kit K-3341, Oil Seal Kit (Electric Cover) K-2918
Additional Information
K-3354 Component List:14317 Snap Ring x2
14750 Snap Ring x1
14897 Spring x3
15918 Position Finder Spring x3
16980 Snap Ring x1
4300902-BOX Tapered Roller Bearing x1
4301254 Snap Ring x1
4301851-BOX Bearing x4
4303424 Snap Ring x1
4304317 Sliding Clutch x1
4308397 Main Case Countershaft Front Bearing x2
4308403 Reverse Gear Idler Shaft Bearing x2
4308452 Bearing x2
5556503-BOX Bearing x1
5566508-BOX Bearing x1
71205 Sealant x1
81504 Ball Bearing x1
84006 Straight Connector x2
85003 Elbow Connector x1
K-2805 Shim Kit x1
K-2918 Oil Seal Kit - Electric Cover x1
K-3288 Gasket Kit x1
K-3341 O-Ring Kit x1
L-1680 Instruction Letter x1
L-3887 Instruction Letter x1
L-3987 Instruction Letter x1
S-1659 Input Shaft Assembly x1
