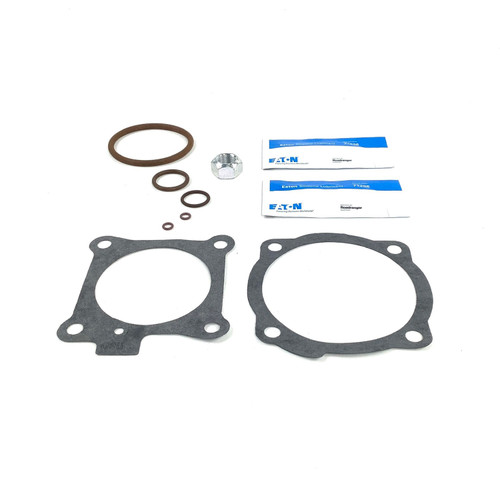

The Eaton Fuller K-3484 or K3484 is an O-Ring Kit for the range control valve on Fuller range-shift transmissions. The kit contains the following components per the Eaton Inforanger bill of materials: o-ring 14344 (x1), o-ring 14345 (x1), gasket 14347 (x1), o-ring 14765 (x1), o-rings 15114 (x2), range cylinder cover gasket 691955 (x1), silicone lubricant 71206 (x1), instruction letter L-2012 (x1), and a 5/8-18 hex Eslok nut (x1). Cross-references include K3484-SP, K3484SP, and HFK-3484. Call us to confirm fitment for your specific transmission application.
Features
Range control valve O-ring service kit for Fuller range-shift transmissions
Includes 4 individual o-rings (part numbers 14344, 14345, 14765, and 15114 x2)
Includes range cylinder cover gasket (691955) and additional gasket (14347)
Packed with silicone lubricant (71206) and installation instruction letter
Includes 5/8-18 hex Eslok nut for reassembly
Cross-references: K3484-SP, K3484SP, HFK-3484, ZBFK3484
Tech Specs
- Kit Part Number: K-3484 or K3484
- Kit Type: Range Control Valve O-Ring and Gasket Kit
- Components: 4 o-rings, 2 gaskets, silicone lubricant, hardware nut, instruction letter
- Hex Nut Size: 5/8-18
- Cross References: K3484-SP, K3484SP, HFK-3484, 3088-K3484, ZBFK3484
