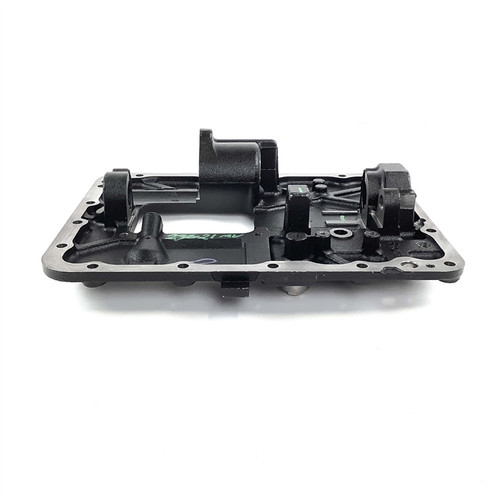

Eaton Fuller shift bar housing assembly S-2842 or S2842 is the top cover unit that carries the shift rails and forks for Fuller (Fro) series manual transmissions. The shift bar housing holds the rails, forks, and interlock hardware that route shifter movement into the gearbox, so a worn or damaged housing is a common cause of hard or sloppy shifting. This unit crosses to 3088-S2842, 4304435, 4305081, 5305286, 85105841, and ZBFS2842. Outer dimensions are 3 in. high by 15 in. wide by 17 in. long. Not sure this is your part? Give us a call to confirm proper fit for your transmission.
Features
Eaton Fuller shift bar housing assembly, part number S-2842 or S2842
Fits Fuller (Fro) series manual transmissions
Carries the shift rails, forks, and interlock hardware
Outer dimensions: 3 in. high x 15 in. wide x 17 in. long
Cross references: 3088-S2842, 4304435, 4305081, 5305286, 85105841, ZBFS2842
Tech Specs
- Part type: Shift bar housing assembly
- Brand: Eaton Fuller
- Part number: S-2842 or S2842
- Application: Fuller (Fro) series manual transmissions
- Dimensions: 3 in. H x 15 in. W x 17 in. L
- Cross references: 3088-S2842, 4304435, 4305081, 5305286, 85105841, ZBFS2842
