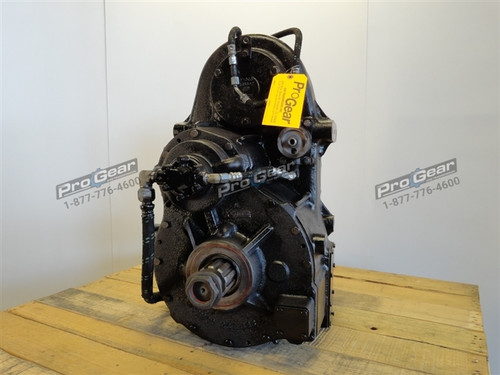

Fabco TC-200 transfer case. This is a two-speed, four-shaft, constant-mesh design with a declutch mechanism for front axle and under-drive engagement. Fabco part number 873-0065-012 replacement for 873-0065-002. Navistar International part number 3533587C91. We offer used and rebuilt transfer cases and PTO'S for sale. Give us a call today We are an authorized Fabco distributor
All transfer cases are sold exchange. Core charges will apply and may be refunded in whole or in part upon delivery and inspection. Unit will be subject to manufacturer's core policy unless otherwise stated in writing.
Due to the many configurations of this Fabco unit, we will need the following information to quote you the correct unit:
Please provide the following information from the Data Tag located on your transfer case:
You can send a clear picture of the data tag or fill in the below information and send it to us.
Model Number ___________________________
Fabco part number:_______________________
Serial number: ___________________________
Your Data Tag should look like this:
We offer new, used, and rebuilt Fabco transfer cases. We also offer parts and repair services on your existing unit. We can pick it up from anywhere, repair it and send it back from you. Give us a call today!
Freight: All heavy packages are shipped via truck freight best way unless customer requests otherwise. You can contact us with your shipping requirements and instructions.
Freight Quote available upon request. Please contact us with your shipping address.
All transfer cases are sold exchange. Core charges will apply and may be refunded in whole or in part upon delivery and inspection. Unit will be subject to manufacturer's core policy unless otherwise stated in writing.
Due to the many configurations of this Fabco unit, we will need the following information to quote you the correct unit:
Please provide the following information from the Data Tag located on your transfer case:
You can send a clear picture of the data tag or fill in the below information and send it to us.
Model Number ___________________________
Fabco part number:_______________________
Serial number: ___________________________
Your Data Tag should look like this:
We offer new, used, and rebuilt Fabco transfer cases. We also offer parts and repair services on your existing unit. We can pick it up from anywhere, repair it and send it back from you. Give us a call today!
Freight: All heavy packages are shipped via truck freight best way unless customer requests otherwise. You can contact us with your shipping requirements and instructions.
Freight Quote available upon request. Please contact us with your shipping address.
| Input Torque |
8,000 Lb. Ft.
|
| Horsepower | 350 HP |
| Input Speed | 3,500 RPM |
|
Ratios
Direct Underdrive |
1:1 2.11:1 |
| Gear Type | Helical, Case Hardened |
|
Shaft Sizes
Input/Front Output Rear Output |
2.06 Inches, 32 Involute Spline 2.31 Inches, 36 Involute Spline |
|
Shaft Spacing (Drop)
|
9.25 Inches - to Rear Output
10.6 Inches - to Front Output 8.9 Offset to Right |
|
Housing
|
Cast Iron
|
| Shift Mechanisms | Integral Air Cylinders |
| Bearings | Tapered Roller |
| Lubrication System | Splash |
| Lubricant Specification | SAE 50 or SAE 90 |
| Lubricant Capacity-Nominal | 10 Quarts |
| Weight - Dry | ~570-lbs |
