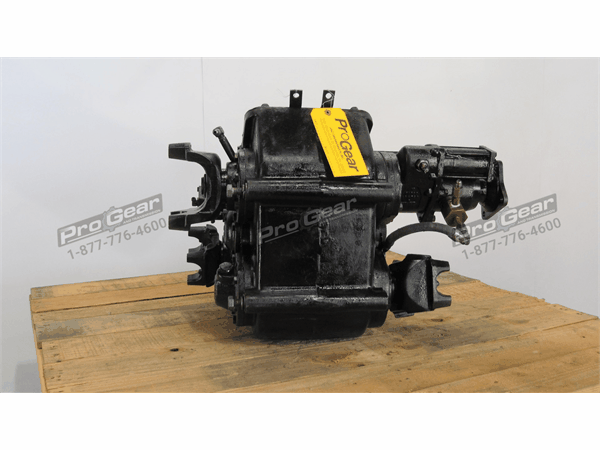

Fabco TC-38 PTO / Transfer Case is a 2-speed model with constant mesh design. The TC38-PTO offers a high torque, robust compact design intended for severe service on/off highway medium duty all-wheel drive vehicles. The offset design allows chassis designers to keep a low cab height by enabling to locate the front axle drive shaft away from the transmission and engine. A Fabco TC-38-PTO matched with the Fabco FSD series front steer drive axles is a well proven and robust all-wheel drive system. Ask us for more information!
Every Fabco Transfer Case TC-38-PTO two 2 speed is remanufactured with 1 year warranty using all genuine parts. All transfer cases are sold exchange. Core charges will apply and may be refunded in whole or in part upon delivery and inspection. Unit will be subject to manufacturer's core policy unless otherwise stated in writing.
We offer new, used, and rebuilt Fabco transfer cases. We also offer parts and repair services on your existing unit. We can pick it up from anywhere, repair it and send it back from you. Give us a call today!
Freight: All heavy packages are shipped via truck freight best way unless customer requests otherwise. You can contact us with your shipping requirements and instructions.
Freight Quote available upon request. Please contact us with your shipping address.
Every Fabco Transfer Case TC-38-PTO two 2 speed is remanufactured with 1 year warranty using all genuine parts. All transfer cases are sold exchange. Core charges will apply and may be refunded in whole or in part upon delivery and inspection. Unit will be subject to manufacturer's core policy unless otherwise stated in writing.
We offer new, used, and rebuilt Fabco transfer cases. We also offer parts and repair services on your existing unit. We can pick it up from anywhere, repair it and send it back from you. Give us a call today!
Freight: All heavy packages are shipped via truck freight best way unless customer requests otherwise. You can contact us with your shipping requirements and instructions.
Freight Quote available upon request. Please contact us with your shipping address.
| Torque, System | 8,500 Lb. Ft. |
| Horsepower | 350 |
| Input Speed | 3,500 RPM |
| Ratios | 1:1 High Range, 2.22:1 Low Range |
| Gear Type | Helical Case Hardened Hi Range, Spur Low Range |
| Shaft Sizes | 1.95â€-38 involute spline |
| Housing Construction | Precision Cast Iron |
| Shaft Spacing (Drop) | 8.50-Inches |
| Shift Mechanisms | Integral Air Shift |
| Bearings | Tapered Roller |
| Lubrication System | Splash |
| Lubricant Specification | SAE 50 or 75W90 GL4 MT-1 Synthetic Gear Oil |
| Lubricant Capacity-Nominal | 7.0 Quarts |
| Weight - Dry | 450-lbs |
