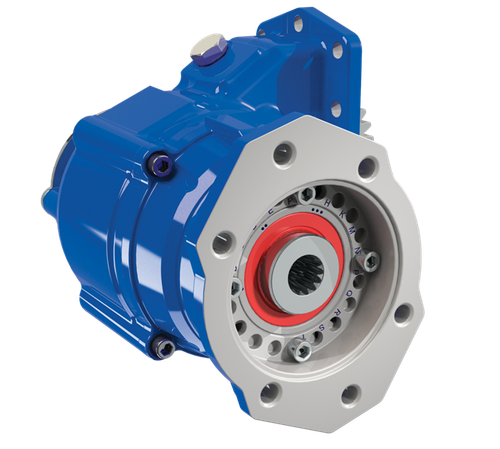

The Muncie A30-A1005-MX1BBBX or A30A1005MX1BBBX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series transmissions. The A30 Series carries a single intermittent/continuous torque rating and is available in three housing arrangements, giving fleet builders flexibility at installation. A rotatable pump flange and increased housing clearance simplify pump alignment and mounting. Tapered roller bearings extend service life, and an increased-diameter output shaft adds durability at higher load cycles. The unit is compatible with the EX Drive shaft extension. Call us to confirm proper fit for your specific transmission and application.
Features
10-bolt constant drive PTO, Allison 3000 and 4000 Series compatible
Rotatable pump flange for flexible pump positioning
Tapered roller bearings for extended service life
Increased output shaft diameter for higher load durability
Three housing arrangements available
Compatible with EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | HP (KW) @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
