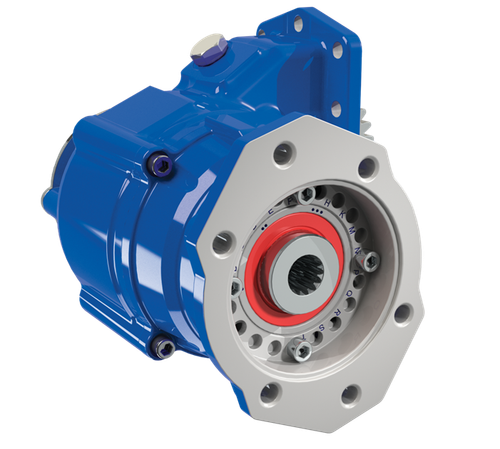

The Muncie A30-A1005-MX3IIPX or A30A1005MX3IIPX is a 10-bolt constant drive power take-off designed for Allison 3000 and 4000 Series automatic transmissions. Part of Muncie's A30 Series, this PTO mounts with extended-length fasteners and offers three housing arrangements to fit different installation constraints. The rotatable pump flange lets you clock the output to your hydraulic pump without additional adapters, and increased clearance simplifies installation in tight engine bays. Tapered roller bearings are standard throughout, extending service life. The output shaft features an increased diameter for higher durability, and the gear set is optimized to reduce operating noise. This unit carries a single intermittent/continuous torque rating and is compatible with Muncie's EX Drive shaft extension. A genuine Muncie part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
10-bolt constant drive mount for Allison 3000 and 4000 Series automatic transmissions
Rotatable pump flange for flexible hydraulic pump clocking without extra adapters
Tapered roller bearings throughout for extended PTO service life
Increased output shaft diameter for added durability under load
Maximized gear design reduces operating noise
Compatible with Muncie EX Drive shaft extension; three housing arrangements available
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
