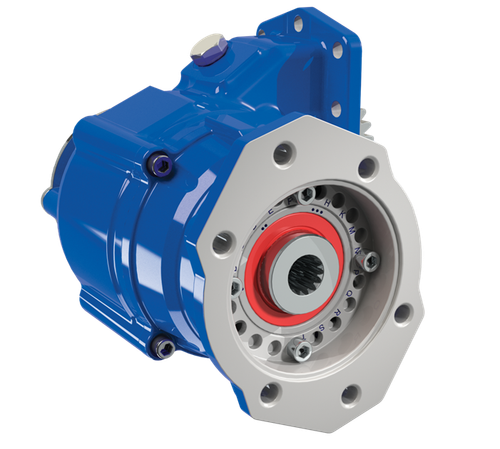

The Muncie A30-A1006-MX3BBPX (also referenced as A30A1006MX3BBPX) is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series automatic transmissions. The A30 Series carries a single intermittent/continuous torque rating rather than separate ratings, which simplifies spec matching for fleet applications. A rotatable pump flange allows flexible hydraulic pump positioning, and extended-length PTO mounting fasteners give installers added clearance during installation. Tapered roller bearings support long service life, while an increased output shaft diameter raises drivetrain durability. The unit is compatible with the Muncie EX Drive shaft extension for applications requiring additional driveline reach. Call us to confirm proper fit for your specific transmission and application.
Features
10-bolt constant drive PTO mounting configuration for Allison 3000 and 4000 Series transmissions
Rotatable pump flange for flexible hydraulic pump positioning
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher drivetrain durability
Single intermittent/continuous torque rating simplifies application matching
Three housing arrangements available; compatible with Muncie EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
