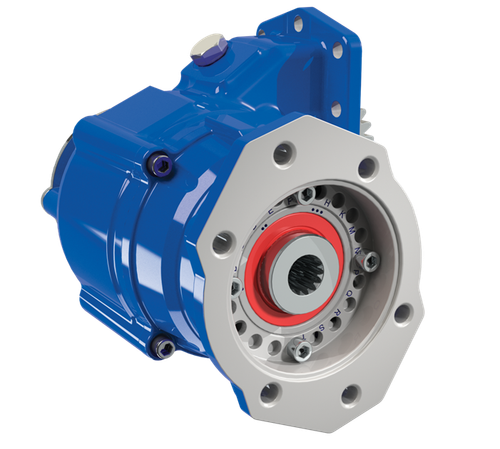

The Muncie A30-A1010-MX3BBPX or A30A1010MX3BBPX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series automatic transmissions. The rotatable pump flange and extended-length mounting fasteners simplify installation, while increased clearance around the unit makes fitting it in tight applications more manageable. Tapered roller bearings support long service life, and an increased output shaft diameter handles demanding duty cycles. The gear set is engineered for reduced noise, and a single intermittent/continuous torque rating means straightforward spec matching. Available in three housing arrangements and compatible with the EX Drive shaft extension for added installation flexibility. Call us to confirm proper fit for your specific transmission and application.
Features
10-bolt constant drive mounting for Allison 3000 and 4000 Series transmissions
Rotatable pump flange with increased housing clearance for easier installation
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher load capacity
Single intermittent/continuous torque rating simplifies application selection
Compatible with EX Drive shaft extension; available in three housing arrangements
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
