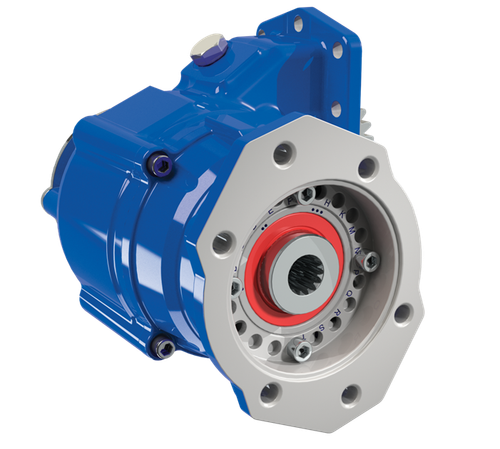

The Muncie A30-A1008-MX3X4PX (also shown as A30A1008MX3X4PX) is a genuine Muncie constant drive power takeoff engineered for Allison 3000 and 4000 Series transmissions using a 10-bolt mounting. The rotatable pump flange simplifies installation orientation, and increased clearance around the mounting area makes the job faster on tight installations. Tapered roller bearings handle the output loads and extend PTO service life. The output shaft diameter is sized for higher torque capacity, and reduced leak paths keep fluids where they belong. Gear geometry is optimized to keep noise down under load. Compatible with the EX drive shaft extension and available in three housing arrangements. Call us to confirm the right configuration for your application.
Features
10-bolt constant drive mounting for Allison 3000 and 4000 Series transmissions
Rotatable pump flange for flexible installation orientation
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher torque durability
Reduced leak paths and optimized gear design for lower noise
Compatible with EX drive shaft extension; three housing arrangements available
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
