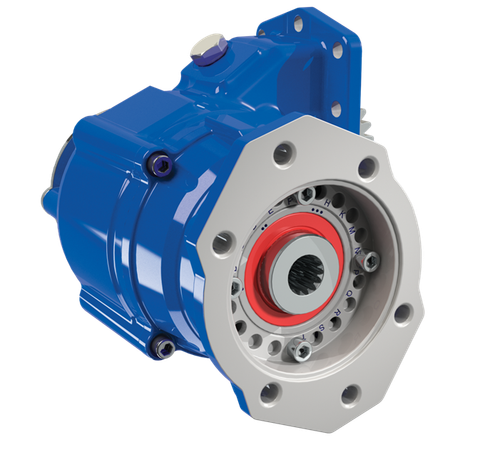

The Muncie A30-A1010-MX3IIPW or A30A1010MX3IIPW is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series transmissions. The rotatable pump flange allows flexible mounting orientation, and three available housing arrangements give installers additional layout options. Extended-length PTO mounting fasteners and increased clearance simplify installation. Tapered roller bearings extend service life, and the increased output shaft diameter raises durability under load. The gear design is optimized to reduce operating noise, and reduced leak paths improve long-term sealing. This unit is compatible with the EX Drive shaft extension for added installation flexibility. Call us to confirm proper fit for your specific transmission and application.
Features
10-bolt constant drive mount for Allison 3000 and 4000 Series transmissions
Rotatable pump flange for flexible mounting orientation
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher durability under load
Three housing arrangements to suit different installation layouts
Compatible with EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
