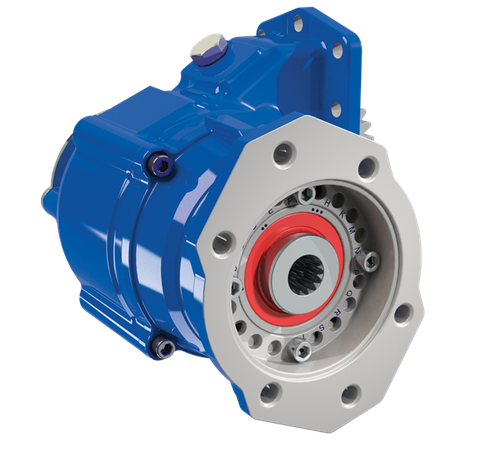

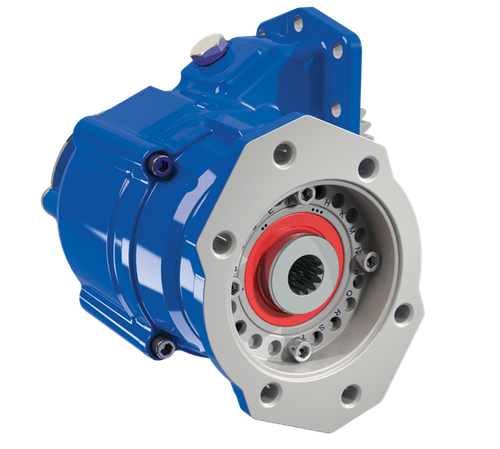

The Muncie A30-A1007-MX31XPX (also referenced as A30A1007MX31XPX) is a 10-bolt constant drive power take-off built on Muncie's A30 Series platform for Allison transmissions. The rotatable pump flange gives installers flexibility in routing, and extended-length PTO mounting fasteners combined with increased clearance simplify the install. Tapered roller bearings and an increased-diameter output shaft are built into the design for longer service life, while a maximized gear profile keeps noise levels down. A single intermittent/continuous torque rating simplifies spec work, and the unit accommodates three housing arrangements. Compatible with the Muncie EX Drive shaft extension. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
10-bolt constant drive PTO for Allison transmissions
Rotatable pump flange for flexible hydraulic pump routing
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for added durability
Three housing arrangements to suit different installation requirements
Compatible with Muncie EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
