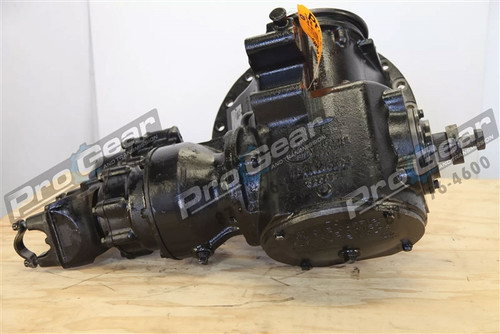

The Mack CRDPC92 is a front drive differential with an air power divider and a 5.02 axle ratio, also referenced as part number CRDPC92R502. This unit fits Mack front drive axle applications and includes an integrated air-actuated power divider for inter-axle torque management. Before placing your order, have the following ready: fine or coarse spline count on the input and output shafts, upper torque rod style (one tapered ball stud hole or two-bolt dog-bone), whether your housing has four 3/4-inch bolt holes in the rear for a transverse rod mounting plate, and your axle spline count. Call us to confirm proper fitment for your specific axle configuration. A genuine Mack part from Pro Gear and Transmission.
A refundable core charge of $2,000.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Mack CRDPC92 front drive differential, part number CRDPC92R502
Air power divider for inter-axle torque distribution
5.02 axle ratio
Compatible with fine or coarse spline input and output shaft configurations
Housing accommodates either tapered ball stud or two-bolt dog-bone upper torque rod
Rear housing may include four 3/4-inch bolt holes for transverse rod mounting plate
Tech Specs
- Ratio: 5.02
- Power Divider: Air-actuated
- Part Number: CRDPC92 or CRDPC92R502
