QP4-1655-82 Meritor Q Plus Camshaft Brake Assembly

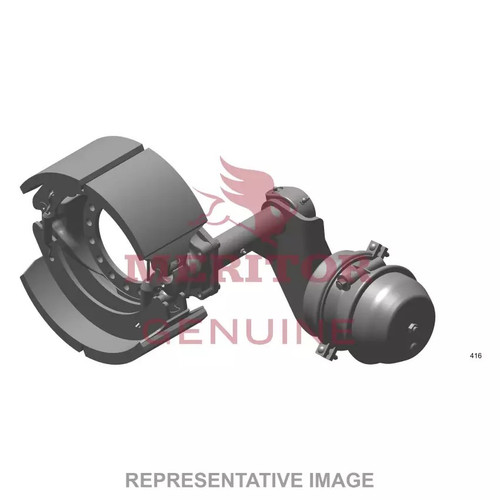

The Meritor Q Plus Camshaft Brake Assembly, part number QP4-1655-82 or QP4165582, is a genuine Meritor OEM brake assembly sized at 16.50 in. x 5.00 in. with R301 friction material. This is a complete, ready-to-install assembly that includes the brake spider assembly, right-hand S-camshaft, brake shoes with lining and roller assemblies, return and retainer springs, anchor pins, camshaft seals, an automatic slack adjuster (1.50-28), brake chamber mounting bracket assembly, clevis hardware, and associated bushings and hardware. Each component is produced to Meritor Q Plus specifications. Call us to confirm proper fitment for your axle configuration before ordering.

Features

Genuine Meritor Q Plus brake assembly, part number QP4-1655-82 or QP4165582
Brake size: 16.50 in. x 5.00 in.
Friction material: R301
Right-hand S-camshaft (component 2210D7492)
Includes automatic slack adjuster assembly R803110 (1.50-28 specification)
Complete assembly with spider, shoes, springs, seals, anchor pins, bracket, and clevis hardware

Tech Specs

• Brake Type: Q Plus
• Brake Size: 16.50 in. x 5.00 in.
• Friction Material: R301
• Camshaft Hand: Right Hand
• Automatic Slack Adjuster: 1.50-28 (R803110)
• Unit Pack: 1
• VMRS Code: 013-017-000
• Status: Active

Additional Information

This assembly includes the following Meritor components:
A23211N5474 - Brake Spider Assembly x1
1225L1208 - Air Brake Bushing x2
1225B496 - Anchor Pin Bushing, Stainless Steel x2
A 1205V1556 - Camshaft Seal x2
1205G761 - O-Ring x1
A43222Z2288 - Brake Shoe with Lining and Roller Assembly x2
3105B210 - Finish Retainer x1
2297T7222 - Brake Shoe Roller x1
1218G85 - Return Spring Retainer x1
1259N274 - Brake Shoe Anchor Pin x2
1229E4685 - Brake Washer x1
2210D7492 - Camshaft, Right Hand x1
2258Y1273 - Brake Shoe Return Spring x1
2258H1230 - Brake Shoe Retainer Spring x2
B13299E3047 - Brake Chamber Bracket Assembly x1
A-2297U9251 - Capscrew x4
1199N1860 - Lube Fitting x1
1229S2697 - Camshaft Hardware x1
1229N4590 - Brake Washer x1
1229J3130 - Camshaft Hardware x2
R803110 - Automatic Slack Adjuster Assembly, 1.50-28 x1
1898R720 - Grease Fitting x1
1245N1080 - Clevis x1
19X127 - Clevis Pin x1
2257C1173 - Clevis Clip x1
19X1116 - Clevis Pin x1
2257D1174 - Clevis Clip x1
1229D2942 - Camshaft Hardware x1
Additional components included; call Pro Gear and Transmission to confirm complete bill of materials.
