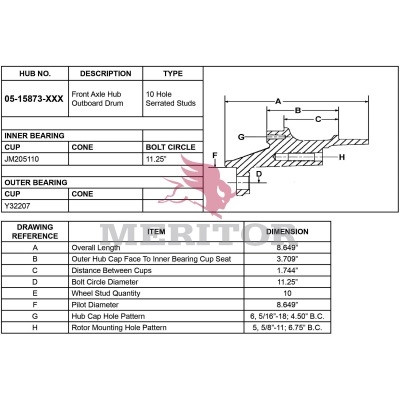

05-15873-002 Meritor Assembly - Front Hub

Meritor Assembly-Frt Hub P/N: 05-15873-002 or 0515873002. Genuine Meritor - Rockwell OEM brake parts, brake calipers, brake chambers, brake dust shields, brake shoes, brake foot valves, and more. Genuine Meritor parts are just a click or call away.

Features

Tone Ring:N
Axle Series:For GM
Fully Dressed:No
Hub Type:Hub only
Hub Style:Conventional
Axle Application:Steer
Base Part Number:15873
Outer Cone:32207
IBS to Outer Surface:3.713/3.673 in.
Wheel Stud Pattern:10
Wheel Stud Hole:.904/.906 in.
IBS to OBS:1.783/1.744 in.
Wheel Stud Bolt Circle Diameter:11.25 in.
ABS Pilot Diameter:4.337/4.334 in.
Inner Cone:JM205149
Oil Seal:1205H2582
Outer Cup:32207
GAWR (lb):8102
Inner Cup:JM205110
Hub Cap Bolt Circle Diameter:4.50 in.
Inner Bearing Surface (IBS) to Mounting Face:6.213 in.
Hub Cap Pattern:06
Hub Cap Bolt Thread:5/16-18 UNC-2B
Disc Bolt Pattern:05
Disc Bolt Circle Diameter:6.75 in.
Brake Type:Quadraulic
Disc Bolt Size:5/8-11 UNC-2B
VMRS Code:018-001-003
Notes:Wheel studs not included
Flange Outer Diameter:13.406 in.
Rotor Pilot Diameter:5.40/5.397 in.
Wheel Pilot Diameter:8.653/8.646 in.
