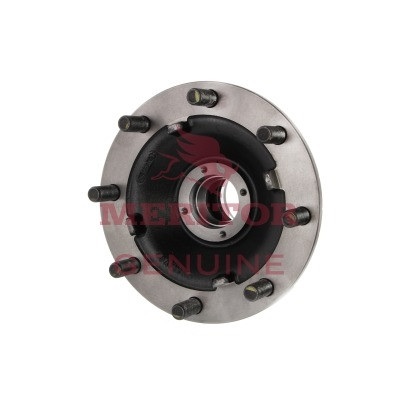

The Meritor 05-16005-002 (or 0516005002) is a front hub assembly designed for the FC-921 steer axle series with a 7500 lb GAWR rating. This hub-only, conventional-style unit is configured for TRW disc brakes and includes an ABS tone ring (ABS ring number 09-002227) with a pilot diameter of 4.726/4.723 in. Key dimensions include a wheel pilot diameter of 6.693/6.689 in., a rotor pilot diameter of 5.486/5.483 in., a flange outer diameter of 10.988 in., and an IBS to mounting face distance of 5.453 in. The 10-stud wheel pattern rides on a bolt circle diameter of 8.858 in. with 0.604/0.606 in. stud holes. Bearing components include inner cone 45284, inner cup 45220, outer cone 25880, and outer cup 25820. A genuine Meritor part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Interchanges:
- 0516005002RI
- 82350516005002
- TDA0516005002
Features
FC-921 steer axle application, conventional hub style, hub only (not fully dressed)
GAWR: 7500 lb
TRW disc brake type; disc bolt pattern: 10 x M12 x 1.75 6H on a 6.428 in. bolt circle
ABS tone ring included; ABS pilot diameter 4.726/4.723 in., ABS ring number 09-002227
Wheel pilot diameter 6.693/6.689 in.; flange outer diameter 10.988 in.; rotor pilot diameter 5.486/5.483 in.
10-stud wheel pattern on 8.858 in. bolt circle; hub cap bolt thread 5/16-18 UNC-2B on 3.62 in. bolt circle
Tech Specs
- Axle Series: FC-921
- Axle Application: Steer
- GAWR: 7500 lb
- Hub Style: Conventional
- Hub Type: Hub only
- Fully Dressed: No
- Brake Type: TRW Disc
- Tone Ring (ABS): Yes
- ABS Ring Number: 09-002227
- ABS Pilot Diameter: 4.726/4.723 in.
- Wheel Pilot Diameter: 6.693/6.689 in.
- Rotor Pilot Diameter: 5.486/5.483 in.
- Flange Outer Diameter: 10.988 in.
- IBS to Mounting Face: 5.453 in.
- IBS to Outer Bearing Surface: 4.480/4.440 in.
- IBS to OBS: 3.145/3.105 in.
- Wheel Stud Pattern: 10
- Wheel Stud Bolt Circle Diameter: 8.858 in.
- Wheel Stud Hole: 0.604/0.606 in.
- Wheel Stud: 09-002216
- Disc Bolt Pattern: 10
- Disc Bolt Circle Diameter: 6.428 in.
- Disc Bolt Size: M12 x 1.75 6H
- Hub Cap Bolt Thread: 5/16-18 UNC-2B
- Hub Cap Bolt Circle Diameter: 3.62 in.
- Hub Cap Pattern: 04
- Inner Cone: 45284
- Inner Cup: 45220
- Outer Cone: 25880
- Outer Cup: 25820
- Oil Seal: A1205V2102
- Base Part Number: 16005
- VMRS Code: 018-001-003
